4. Brief Introduction to Remote Sensing
4.1. Basic Definitions
This chapter provides basic definitions about GIS and remote sensing.
4.1.1. GIS definition
There are several definitions of GIS (Geographic Information Systems), which is not simply a program. In general, GIS are systems that allow for the use of geographic information (data have spatial coordinates). In particular, GIS allow for the view, query, calculation and analysis of spatial data, which are mainly distinguished in raster or vector data structures. Vector is made of objects that can be points, lines or polygons, and each object can have one or more attribute values; a raster is a grid (or image) where each cell has an attribute value (Fisher and Unwin, 2005). Several GIS applications use raster images that are derived from remote sensing.
4.1.2. Remote Sensing definition
A general definition of Remote Sensing is « the science and technology by which the characteristics of objects of interest can be identified, measured or analyzed the characteristics without direct contact » (JARS, 1993).
Usually, remote sensing is the measurement of the energy that is emanated from the Earth’s surface. If the source of the measured energy is the sun, then it is called passive remote sensing, and the result of this measurement can be a digital image (Richards and Jia, 2006). If the measured energy is not emitted by the Sun but from the sensor platform then it is defined as active remote sensing, such as radar sensors which work in the microwave range (Richards and Jia, 2006).
The electromagnetic spectrum is « the system that classifies, according to wavelength, all energy (from short cosmic to long radio) that moves, harmonically, at the constant velocity of light » (NASA, 2013). Passive sensors measure energy from the optical regions of the electromagnetic spectrum: visible, near infrared (i.e. IR), short-wave IR, and thermal IR (see Figure Electromagnetic-Spectrum).
The interaction between solar energy and materials depends on the wavelength; solar energy goes from the Sun to the Earth and then to the sensor. Along this path, solar energy is (NASA, 2013):
Transmitted - The energy passes through with a change in velocity as determined by the index of refraction for the two media in question.
Absorbed - The energy is given up to the object through electron or molecular reactions.
Reflected - The energy is returned unchanged with the angle of incidence equal to the angle of reflection. Reflectance is the ratio of reflected energy to that incident on a body. The wavelength reflected (not absorbed) determines the color of an object.
Scattered - The direction of energy propagation is randomly changed. Rayleigh and Mie scatter are the two most important types of scatter in the atmosphere.
Emitted - Actually, the energy is first absorbed, then re-emitted, usually at longer wavelengths. The object heats up.
4.1.3. Sensors
Sensors can be on board of airplanes or on board of satellites, measuring the electromagnetic radiation at specific ranges (usually called bands). As a result, the measures are quantized and converted into a digital image, where each picture elements (i.e. pixel) has a discrete value in units of Digital Number (DN) (NASA, 2013). The resulting images have different characteristics (resolutions) depending on the sensor. There are several kinds of resolutions:
Spatial resolution, usually measured in pixel size, « is the resolving power of an instrument needed for the discrimination of features and is based on detector size, focal length, and sensor altitude » (NASA, 2013); spatial resolution is also referred to as geometric resolution or IFOV;
Spectral resolution, is the number and location in the electromagnetic spectrum (defined by two wavelengths) of the spectral bands (NASA, 2013) in multispectral sensors, for each band corresponds an image;
Radiometric resolution, usually measured in bits (binary digits), is the range of available brightness values, which in the image correspond to the maximum range of DNs; for example an image with 8 bit resolution has 256 levels of brightness (Richards and Jia, 2006);
For satellites sensors, there is also the temporal resolution, which is the time required for revisiting the same area of the Earth (NASA, 2013).
4.1.4. Radiance and Reflectance
Sensors measure the radiance, which corresponds to the brightness in a given direction toward the sensor; it useful to define also the reflectance as the ratio of reflected versus total power energy.
4.1.5. Spectral Signature
The spectral signature is the reflectance as a function of wavelength (see Figure Spectral Reflectance Curves of Four Different Targets); each material has a unique signature, therefore it can be used for material classification (NASA, 2013).
4.1.6. Land Cover
Land cover is the material at the ground, such as soil, vegetation, water, asphalt, etc. (Fisher and Unwin, 2005). Depending on the sensor resolutions, the number and kind of land cover classes that can be identified in the image can vary significantly.
4.2. Multispectral satellites
There are several satellites with different characteristics that acquire multispectral images of earth surface. The following satellites are particularly useful for land cover monitoring because images are provided for free and can be downloaded directly from SCP; data have been acquired for the past few decades and the archive is continuously growing with recent images.
4.2.1. Landsat Satellites
Landsat is a set of multispectral satellites developed by the NASA (National Aeronautics and Space Administration of USA), since the early 1970’s.
Landsat images are very used for environmental research. The resolutions of Landsat 4 and Landsat 5 sensors are reported in the following table (from http://landsat.usgs.gov/band_designations_landsat_satellites.php); also, Landsat temporal resolution is 16 days (NASA, 2013).
Landsat 4 and Landsat 5 Bands
Landsat 4, Landsat 5 Bands |
Wavelength [micrometers] |
Resolution [meters] |
---|---|---|
Band 1 - Blue |
0.45 - 0.52 |
30 |
Band 2 - Green |
0.52 - 0.60 |
30 |
Band 3 - Red |
0.63 - 0.69 |
30 |
Band 4 - Near Infrared (NIR) |
0.76 - 0.90 |
30 |
Band 5 - SWIR |
1.55 - 1.75 |
30 |
Band 6 - Thermal Infrared |
10.40 - 12.50 |
120 (resampled to 30) |
Band 7 - SWIR |
2.08 - 2.35 |
30 |
The resolutions of Landsat 7 sensor are reported in the following table (from http://landsat.usgs.gov/band_designations_landsat_satellites.php); also, Landsat temporal resolution is 16 days (NASA, 2013).
Landsat 7 Bands
Landsat 7 Bands |
Wavelength [micrometers] |
Resolution [meters] |
---|---|---|
Band 1 - Blue |
0.45 - 0.52 |
30 |
Band 2 - Green |
0.52 - 0.60 |
30 |
Band 3 - Red |
0.63 - 0.69 |
30 |
Band 4 - Near Infrared (NIR) |
0.77 - 0.90 |
30 |
Band 5 - SWIR |
1.57 - 1.75 |
30 |
Band 6 - Thermal Infrared |
10.40 - 12.50 |
60 (resampled to 30) |
Band 7 - SWIR |
2.09 - 2.35 |
30 |
Band 8 - Panchromatic |
0.52 - 0.90 |
15 |
The resolutions of Landsat 8 sensor are reported in the following table (from http://landsat.usgs.gov/band_designations_landsat_satellites.php); also, Landsat temporal resolution is 16 days (NASA, 2013).
Landsat 8 Bands
Landsat 8 Bands |
Wavelength [micrometers] |
Resolution [meters] |
---|---|---|
Band 1 - Coastal aerosol |
0.43 - 0.45 |
30 |
Band 2 - Blue |
0.45 - 0.51 |
30 |
Band 3 - Green |
0.53 - 0.59 |
30 |
Band 4 - Red |
0.64 - 0.67 |
30 |
Band 5 - Near Infrared (NIR) |
0.85 - 0.88 |
30 |
Band 6 - SWIR 1 |
1.57 - 1.65 |
30 |
Band 7 - SWIR 2 |
2.11 - 2.29 |
30 |
Band 8 - Panchromatic |
0.50 - 0.68 |
15 |
Band 9 - Cirrus |
1.36 - 1.38 |
30 |
Band 10 - Thermal Infrared (TIRS) 1 |
10.60 - 11.19 |
100 (resampled to 30) |
Band 11 - Thermal Infrared (TIRS) 2 |
11.50 - 12.51 |
100 (resampled to 30) |
A vast archive of images is freely available from the U.S. Geological Survey . For more information about how to freely download Landsat images read this .
Images are identified with the paths and rows of the WRS (Worldwide Reference System for Landsat ).
4.2.2. Sentinel-2 Satellite
Sentinel-2 is a multispectral satellite developed by the European Space Agency (ESA) in the frame of Copernicus land monitoring services. Sentinel-2 acquires 13 spectral bands with the spatial resolution of 10m, 20m and 60m depending on the band, as illustrated in the following table (ESA, 2015).
Sentinel-2 Bands
Sentinel-2 Bands |
Central Wavelength [micrometers] |
Resolution [meters] |
---|---|---|
Band 1 - Coastal aerosol |
0.443 |
60 |
Band 2 - Blue |
0.490 |
10 |
Band 3 - Green |
0.560 |
10 |
Band 4 - Red |
0.665 |
10 |
Band 5 - Vegetation Red Edge |
0.705 |
20 |
Band 6 - Vegetation Red Edge |
0.740 |
20 |
Band 7 - Vegetation Red Edge |
0.783 |
20 |
Band 8 - NIR |
0.842 |
10 |
Band 8A - Vegetation Red Edge |
0.865 |
20 |
Band 9 - Water vapour |
0.945 |
60 |
Band 10 - SWIR - Cirrus |
1.375 |
60 |
Band 11 - SWIR |
1.610 |
20 |
Band 12 - SWIR |
2.190 |
20 |
Sentinel-2 images are freely available from the ESA website https://scihub.copernicus.eu.
4.2.3. Sentinel-3 Satellite
Sentinel-3 is a satellite developed by the European Space Agency (ESA) in the frame of Copernicus land monitoring services. It carries several instruments, in particular the Ocean and Land Colour Instrument (OLCI) is a push-broom imaging spectrometer acquiring 21 bands in the range 0.4-1.02 μm with a swath width of 1,270km and 300m spatial resolution (ESA, 2013). The revisit time is about 2 days.
Sentinel-3 Bands
Sentinel-3 Bands |
Central Wavelength [micrometers] |
---|---|
Oa1 |
0.400 |
Oa2 |
0.4125 |
Oa3 |
0.4425 |
Oa4 |
0.490 |
Oa5 |
0.510 |
Oa6 |
0.560 |
Oa7 |
0.620 |
Oa8 |
0.665 |
Oa9 |
0.67375 |
Oa10 |
0.68125 |
Oa11 |
0.70875 |
Oa12 |
0.75375 |
Oa13 |
0.76125 |
Oa14 |
0.764375 |
Oa15 |
0.7675 |
Oa16 |
0.77875 |
Oa17 |
0.865 |
Oa18 |
0.885 |
Oa19 |
0.900 |
Oa20 |
0.940 |
Oa21 |
1.020 |
4.2.4. ASTER Satellite
The ASTER (Advanced Spaceborne Thermal Emission and Reflection Radiometer) satellite was launched in 1999 by a collaboration between the Japanese Ministry of International Trade and Industry (MITI) and the NASA. ASTER has 14 bands whose spatial resolution varies with wavelength: 15m in the visible and near-infrared, 30m in the short wave infrared, and 90m in the thermal infrared (USGS, 2015). ASTER bands are illustrated in the following table (due to a sensor failure SWIR data acquired since April 1, 2008 is not available ). An additional band 3B (backwardlooking near-infrared) provides stereo coverage.
ASTER Bands
ASTER Bands |
Wavelength [micrometers] |
Resolution [meters] |
---|---|---|
Band 1 - Green |
0.52 - 0.60 |
15 |
Band 2 - Red |
0.63 - 0.69 |
15 |
Band 3N - Near Infrared (NIR) |
0.78 - 0.86 |
15 |
Band 4 - SWIR 1 |
1.60 - 1.70 |
30 |
Band 5 - SWIR 2 |
2.145 - 2.185 |
30 |
Band 6 - SWIR 3 |
2.185 - 2.225 |
30 |
Band 7 - SWIR 4 |
2.235 - 2.285 |
30 |
Band 8 - SWIR 5 |
2.295 - 2.365 |
30 |
Band 9 - SWIR 6 |
2.360 - 2.430 |
30 |
Band 10 - TIR 1 |
8.125 - 8.475 |
90 |
Band 11 - TIR 2 |
8.475 - 8.825 |
90 |
Band 12 - TIR 3 |
8.925 - 9.275 |
90 |
Band 13 - TIR 4 |
10.25 - 10.95 |
90 |
Band 14 - TIR 5 |
10.95 - 11.65 |
90 |
4.2.5. MODIS Products
The MODIS (Moderate Resolution Imaging Spectroradiometer) is an instrument operating on the Terra and Aqua satellites launched by NASA in 1999 and 2002 respectively. Its temporal resolutions allows for viewing the entire Earth surface every one to two days, with a swath width of 2,330km. Its sensors measure 36 spectral bands at three spatial resolutions: 250m, 500m, and 1,000m (see https://lpdaac.usgs.gov/dataset_discovery/modis).
Several products are available, such as surface reflectance and vegetation indices. In this manual we are considering the surface reflectance bands available at 250m and 500m spatial resolution (Vermote, Roger, & Ray, 2015).
MODIS Bands
MODIS Bands |
Wavelength [micrometers] |
Resolution [meters] |
---|---|---|
Band 1 - Red |
0.62 - 0.67 |
250 - 500 |
Band 2 - Near Infrared (NIR) |
0.841 - 0.876 |
250 - 500 |
Band 3 - Blue |
0.459 - 0.479 |
500 |
Band 4 - Green |
0.545 - 0.565 |
500 |
Band 5 - SWIR 1 |
1.230 - 1.250 |
500 |
Band 6 - SWIR 2 |
1.628 - 1.652 |
500 |
Band 7 - SWIR 3 |
2.105 - 2.155 |
500 |
The following products (Version 6, see https://lpdaac.usgs.gov/dataset_discovery/modis/modis_products_table) are available for download (Vermote, Roger, & Ray, 2015):
MOD09GQ: daily reflectance at 250m spatial resolution from Terra MODIS;
MYD09GQ: daily reflectance at 250m spatial resolution from Aqua MODIS;
MOD09GA: daily reflectance at 500m spatial resolution from Terra MODIS;
MYD09GA: daily reflectance at 500m spatial resolution from Aqua MODIS;
MOD09Q1: reflectance at 250m spatial resolution, which is a composite of MOD09GQ (each pixel contains the best possible observation during an 8-day period);
MYD09Q1: reflectance at 250m spatial resolution, which is a composite of MYD09GQ (each pixel contains the best possible observation during an 8-day period);
MOD09A1: reflectance at 250m spatial resolution, which is a composite of MOD09GA (each pixel contains the best possible observation during an 8-day period);
MYD09A1: reflectance at 250m spatial resolution, which is a composite of MYD09GA (each pixel contains the best possible observation during an 8-day period);
4.2.6. GOES Products
The Geostationary Operational Environmental Satellite-R Series (GOES-R) are geostationary satellites developed for weather monitoring by the National Oceanic and Atmospheric Administration (NOAA) and the NASA (NOAA, 2020).
GOES constellation is composed of GOES-R satellite (also known as GOES-16 that replaced GOES-13 on December 2017), and GOES-S satellite (also known as GOES-17, operational since February 2019). Other satellites (GOES-T and GOES-U) are planned to be launched in the future. For more information please visit https://www.goes-r.gov/mission/mission.html .
GOES geostationary satellites monitor continuously the same area, a very large portion of Earth surface with three geographic coverage regions: Full Disk, Continental United States (CONUS), and Mesoscale. In particular, Full Disk products have hemispheric coverage of 83° local zenith angle, and images are acquired every 5-15 minutes. GOES-16 monitors from 75.2 degrees west longitude, including America, the Atlantic Ocean, and the west coast of Africa. GOES-17 monitors from 137.2 degrees west longitude, including the Pacific Ocean.
GOES sensors include several spectral bands.
GOES Bands
GOES Bands |
Central Wavelength [micrometers] |
Resolution [meters] |
---|---|---|
Band 1 - Blue |
0.47 |
1000 |
Band 2 - Red |
0.64 |
500 |
Band 3 - Near Infrared (NIR) |
0.87 |
1000 |
Band 4 - SWIR - Cirrus |
1.38 |
2000 |
Band 5 - SWIR |
1.61 |
1000 |
Band 6 - SWIR |
2.25 |
2000 |
4.3. SAR satellites
Synthetic Aperture Radar (SAR) is a technique of active remote sensing that is the sensor platform emits microwaves in order to acquire images of the ground (Richards and Jia, 2006). In fact, the sensor platform emits the radiation (at a specific wavelength) and measures the magnitude and the phase of radiation that bounces back from the ground to the sensor.
Unlike passive sensors, SAR systems can work day and night and can penetrate clouds allowing for the monitoring of surface also with adverse meteorological conditions; depending on the microwave wavelength, the radiation can penetrate different types of materials allowing for different applications (NASA, 2020).
The main SAR systems can be divided according to the wavelength as illustrated in the following table (NASA, 2020):
Main SAR Bands
Band |
Wavelength [centimeters] |
Application |
---|---|---|
X |
3.8 – 2.4 |
High Resolution SAR, urban monitoring, ice and snow, little penetration into vegetation cover |
C |
7.5 – 3.8 |
global mapping, change detection, ice, low penetration into vegetation cover |
S |
15 – 7.5 |
global mapping, agriculture monitoring, medium penetration into vegetation cover |
L |
30 – 15 |
Medium resolution SAR, biomass and vegetation mapping, high penetration into vegetation cover |
Usually, SAR sensors can emit and measure different polarizations (i.e. orientation of the microwaves of the electric field), for instance vertical (i.e. polarization oriented in the vertical direction in antenna coordinates) and horizontal (i.e. polarization oriented in the horizontal direction in antenna coordinates) (ESA, 2020).
SAR systems can acquire in both ascending and descending orbits, however the acquired images are affected by the different acquisition geometries, which should be considered when mixing ascending and descending images.
Acquisitions are called swaths
and usually they are composed of sub-swaths.
With particular acquisition modes, the resolution of pixels along track
(the side parallel to the flight direction) can be different than slant-range
(the side perpendicular to the flight direction).
SAR phase information is used to perform interferometry (also InSAR) to measure the distance from the sensor to the target (NASA, 2020).
For more information, please read the ESA introduction to SAR and the NASA definition of SAR .
4.3.1. Sentinel-1 Satellites
Sentinel-1 is a Copernicus mission of satellites that operate at C-band to provide SAR imagery at medium resolution (about 10m).
The Sentinel-1 constellation provides high revisit time (about 5 days), a wide swath (250 km), and acquires images in different operational modes. The primary operation mode on land is the Interferometric Wide swath (IW), which is data is acquired in three swaths using the Terrain Observation with Progressive Scanning SAR (TOPSAR) imaging technique (ESA, 2020b).
The Level-1 products systematically delivered by Copernicus are Single Look Complex (SLC, data comprising complex imagery with amplitude and phase) and Ground Range Detected (GRD, Level-1 data with multi-looked intensity only).
Sentinel-1 supports dual polarization, which are horizontal (H) or vertical (V); VV and VH polarimetric channels are available to classify and analyze land cover such as built-up areas or vegetation.
4.4. Land Cover Classification
This chapter provides basic definitions about land cover classifications.
4.4.1. Supervised Classification
A semi-automatic classification (also supervised classification) is an image processing technique that allows for the identification of materials in an image, according to their spectral signatures. There are several kinds of classification algorithms, but the general purpose is to produce a thematic map of the land cover.
Image processing and GIS spatial analyses require specific software such as the Semi-Automatic Classification Plugin for QGIS.
4.4.2. Color Composite
Often, a combination is created of three individual monochrome images, in which each is assigned a given color; this is defined color composite and is useful for photo interpretation (NASA, 2013). Color composites are usually expressed as:
« R G B = Br Bg Bb »
where:
R stands for Red;
G stands for Green;
B stands for Blue;
Br is the band number associated to the Red color;
Bg is the band number associated to the Green color;
Bb is the band number associated to the Blue color.
The following Figure Color composite of a Landsat 8 image shows a color composite « R G B = 4 3 2 » of a Landsat 8 image (for Landsat 7 the same color composite is R G B = 3 2 1; for Sentinel-2 is R G B = 4 3 2) and a color composite « R G B = 5 4 3 » (for Landsat 7 the same color composite is R G B = 4 3 2; for Sentinel-2 is R G B = 8 4 3). The composite « R G B = 5 4 3 » is useful for the interpretation of the image because vegetation pixels appear red (healthy vegetation reflects a large part of the incident light in the near-infrared wavelength, resulting in higher reflectance values for band 5, thus higher values for the associated color red).
4.4.3. Training Areas
Usually, supervised classifications require the user to select one or more Regions of Interest (ROIs, also Training Areas) for each land cover class identified in the image. ROIs are polygons drawn over homogeneous areas of the image that overlay pixels belonging to the same land cover class.
4.4.3.1. Region Growing Algorithm
The Region Growing Algorithm allows to select pixels similar to a seed one, considering the spectral similarity (i.e. spectral distance) of adjacent pixels. In SCP the Region Growing Algorithm is available for the training area creation. The parameter distance is related to the similarity of pixel values (the lower the value, the more similar are selected pixels) to the seed one (i.e. selected clicking on a pixel). An additional parameter is the maximum width, which is the side length of a square, centred at the seed pixel, which inscribes the training area (if all the pixels had the same value, the training area would be this square). The minimum size is used a constraint (for every single band), selecting at least the pixels that are more similar to the seed one until the number of selected pixels equals the minimum size.
In figure Region growing example the central pixel is used as seed (image a) for the region growing of one band (image b) with the parameter spectral distance = 0.1; similar pixels are selected to create the training area (image c and image d).
4.4.4. Classes and Macroclasses
Land cover classes are identified with an arbitrary ID code (i.e. Identifier).
SCP allows for the definition of Macroclass ID (i.e. MC ID)
and Class ID (i.e. C ID), which are the identification codes of land cover
classes.
A Macroclass is a group of ROIs having different Class ID, which is useful
when one needs to classify materials that have different spectral signatures
in the same land cover class.
For instance, one can identify grass (e.g. ID class = 1
and Macroclass ID = 1
) and trees (e.g. ID class = 2
and
Macroclass ID = 1
) as vegetation class (e.g. Macroclass ID = 1
).
Multiple Class IDs can be assigned to the same Macroclass ID, but the same
Class ID cannot be assigned to multiple Macroclass IDs, as shown in the
following table.
Example of Macroclasses
Macroclass name |
Macroclass ID |
Class name |
Class ID |
---|---|---|---|
Vegetation |
1 |
Grass |
1 |
Vegetation |
1 |
Trees |
2 |
Built-up |
2 |
Buildings |
3 |
Built-up |
2 |
Roads |
4 |
Therefore, Classes are subsets of a Macroclass as illustrated in Figure Macroclass example.
If the use of Macroclass is not required for the study purpose, then the same Macroclass ID can be defined for all the ROIs (e.g. Macroclass ID = 1) and Macroclass values are ignored in the classification process.
4.4.5. Classification Algorithms
The spectral signatures (spectral characteristics) of reference land cover classes are calculated considering the values of pixels under each ROI having the same Class ID (or Macroclass ID). Therefore, the classification algorithm classifies the whole image by comparing the spectral characteristics of each pixel to the spectral characteristics of reference land cover classes. SCP implements the following classification algorithms.
4.4.5.1. Minimum Distance
Minimum Distance algorithm calculates the Euclidean distance \(d(x, y)\) between spectral signatures of image pixels and training spectral signatures, according to the following equation:
where:
\(x\) = spectral signature vector of an image pixel;
\(y\) = spectral signature vector of a training area;
\(n\) = number of image bands.
Therefore, the distance is calculated for every pixel in the image, assigning the class of the spectral signature that is closer, according to the following discriminant function (adapted from Richards and Jia, 2006):
where:
\(C_k\) = land cover class \(k\);
\(y_k\) = spectral signature of class \(k\);
\(y_j\) = spectral signature of class \(j\).
It is possible to define a threshold \(T_i\) in order to exclude pixels below this value from the classification:
4.4.5.2. Maximum Likelihood
Maximum Likelihood algorithm calculates the probability distributions for the classes, related to Bayes’ theorem, estimating if a pixel belongs to a land cover class. In particular, the probability distributions for the classes are assumed the of form of multivariate normal models (Richards & Jia, 2006). In order to use this algorithm, a sufficient number of pixels is required for each training area allowing for the calculation of the covariance matrix. The discriminant function, described by Richards and Jia (2006), is calculated for every pixel as:
where:
\(C_k\) = land cover class \(k\);
\(x\) = spectral signature vector of a image pixel;
\(p(C_k)\) = probability that the correct class is \(C_k\);
\(| \Sigma_{k} |\) = determinant of the covariance matrix of the data in class \(C_k\);
\(\Sigma_{k}^{-1}\) = inverse of the covariance matrix;
\(y_k\) = spectral signature vector of class \(k\).
Therefore:
In addition, it is possible to define a threshold to the discriminant function in order to exclude pixels below this value from the classification. Considering a threshold \(T_i\) the classification condition becomes:
Maximum likelihood is one of the most common supervised classifications, however the classification process can be slower than Minimum Distance.
4.4.5.3. Spectral Angle Mapping
The Spectral Angle Mapping calculates the spectral angle between spectral signatures of image pixels and training spectral signatures. The spectral angle \(\theta\) is defined as (Kruse et al., 1993):
Where:
\(x\) = spectral signature vector of an image pixel;
\(y\) = spectral signature vector of a training area;
\(n\) = number of image bands.
Therefore a pixel belongs to the class having the lowest angle, that is:
where:
\(C_k\) = land cover class \(k\);
\(y_k\) = spectral signature of class \(k\);
\(y_j\) = spectral signature of class \(j\).
In order to exclude pixels below this value from the classification it is possible to define a threshold \(T_i\):
Spectral Angle Mapping is largely used, especially with hyperspectral data.
4.4.5.4. Parallelepiped Classification
Parallelepiped classification is an algorithm that considers a range of values for each band, forming a multidimensional parallelepiped that defines a land cover class. A pixel is classified if the values thereof are inside a parallelepiped. One of the major drawbacks is that pixels whose signatures lie in the overlapping area of two or more parallelepipeds cannot be classified (Richards and Jia, 2006).
4.4.5.5. Land Cover Signature Classification
This classification allows for the definition of spectral thresholds for each training input signature (a minimum value and a maximum value for each band). The thresholds of each training input signature define a spectral region belonging to a certain land cover class.
Spectral signatures of image pixels are compared to the training spectral
signatures; a pixel belongs to class X
if pixel spectral signature is
completely contained in the spectral region defined by class X
.
In case of pixels falling inside overlapping regions or outside any spectral
region, it is possible to use additional classification algorithms
(i.e. Minimum Distance, Maximum Likelihood,
Spectral Angle Mapping) considering the spectral
characteristics of the original input signature.
In the following image, a scheme illustrates the Land Cover Signature Classification for a simple case of two spectral bands \(x\) and \(y\). User defined spectral regions define three classes (\(g_a\), \(g_b\), and \(g_c\)). Point \(p_1\) belongs to class \(g_a\) and point \(p_2\) belongs to class \(g_b\). However, point \(p_3\) is inside the spectral regions of both classes \(g_b\) and \(g_c\) (overlapping regions); in this case, point \(p_3\) will be unclassified or classified according to an additional classification algorithm. Point \(p_4\) is outside any spectral region, therefore it will be unclassified or classified according to an additional classification algorithm. Given that point \(p_4\) belongs to class \(g_c\), the spectral region thereof could be extended to include point \(p_4\) .
This is similar to Parallelepiped Classification, with the exception that spectral regions are defined by user, and can be assigned independently for the upper and lower bounds. One can imagine spectral regions as the set of all the spectral signatures of pixels belonging to one class.
In figure Plot of spectral ranges the spectral ranges of three classes (\(g_a\), \(g_b\), and \(g_c\)) are displayed; the colored lines inside the ranges (i.e. semi-transparent area) represent the spectral signatures of pixels that defined the upper and lower bounds of the respective ranges. Pixel \(p_1\) (dotted line) belongs to class \(g_b\) because the spectral signature thereof is completely inside the range of class \(g_b\) (in the upper limit); pixel \(p_2\) (dashed line) is unclassified because the spectral signature does not fall completely inside any range; pixel \(p_3\) (dotted line) belongs to class \(g_a\).
It is worth noticing that these spectral thresholds can be applied to any spectral signature, regardless of spectral characteristics thereof; this function can be very useful for separating similar spectral signatures that differ only in one band, defining thresholds that include or exclude specific signatures. In fact, classes are correctly separated if the spectral ranges thereof are not overlapping at least in one band. Of course, even if spectral regions are overlapping, chances are that no pixel will fall inside the overlapping region and be misclassified; which is the upper (or lower) bound of a range do not imply the existence, in the image, of any spectral signature having the maximum (or minimum) range values for all the bands (for instance pixel \(p_1\) of figure Plot of spectral ranges could not exist).
One of the main benefit of the Land Cover Signature Classification is that it is possible to select pixels and and include the signature thereof in a spectral range; therefore, the classification should be the direct representation of the class expected for every spectral signature. This is very suitable for the classification of a single land cover class (defined by specific spectral thresholds), and leave unclassified the rest of the image that is of no interest for the purpose of the classification.
4.4.5.6. Algorithm raster
An algorithm raster represents the « distance » (according to the definition of the classification algorithm) of an image pixel to a specific spectral signature.
In general, an algorithm raster is produced for every spectral signature
used as training input.
The value of every pixel is the result of the algorithm calculation for a
specific spectral signature.
Therefore, a pixel belongs to class X
if the value of the algorithm raster
corresponding to class X
is the lowest in case of
Minimum Distance or Spectral Angle Mapping
(or highest in case of Maximum Likelihood).
Given a classification, a combination of algorithm rasters can be produced, in order to create a raster with the lowest « distances » (i.e. pixels have the value of the algorithm raster corresponding to the class they belong in the classification). Therefore, this raster can be useful to identify pixels that require the collection of more similar spectral signatures (see Classification preview).

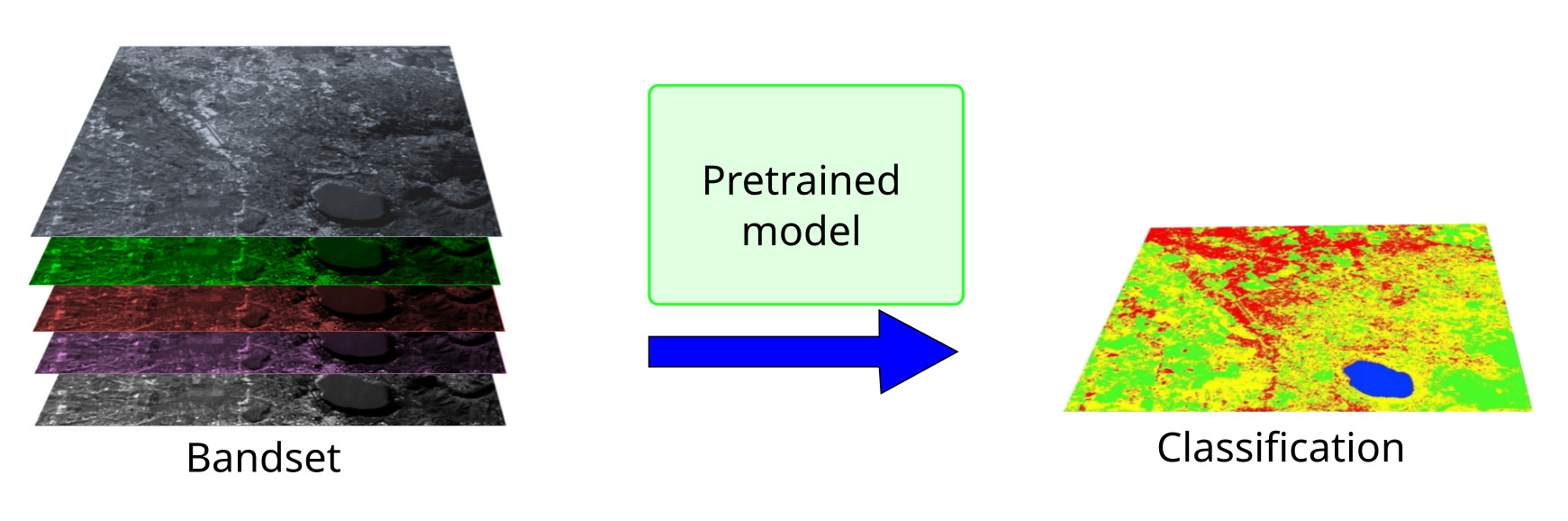

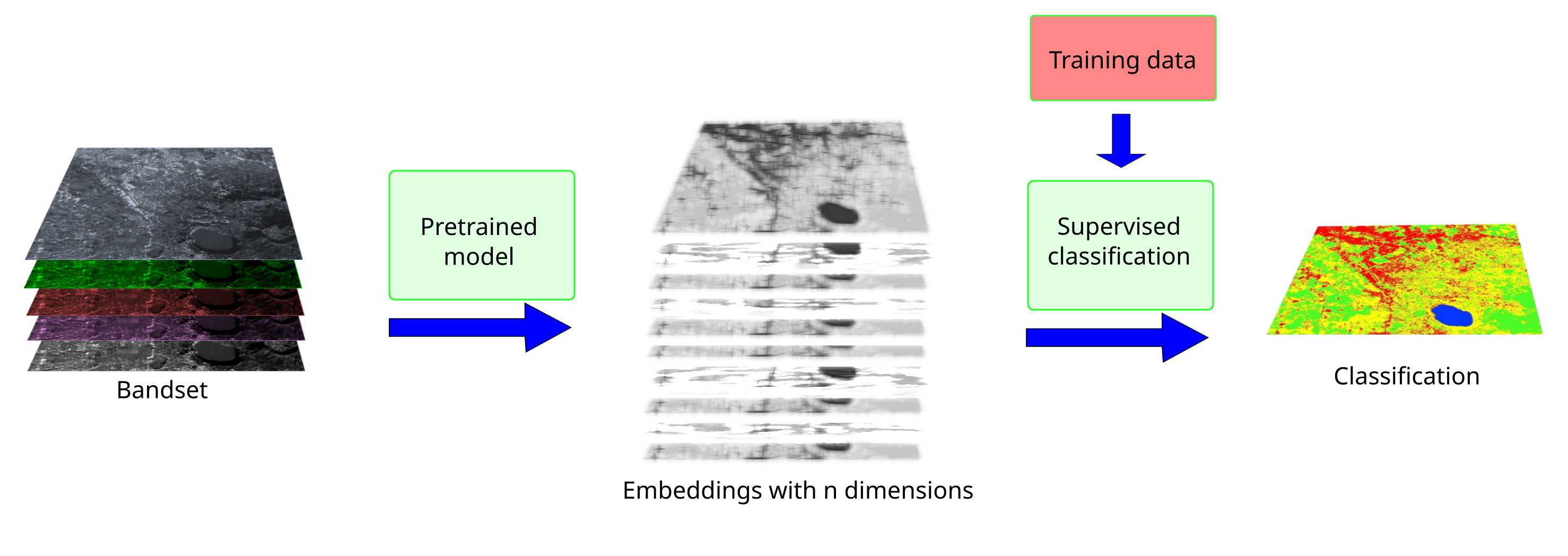

4.4.6. Machine Learning
Machine Learning is a broad set of classification techniques that aim to build mathematical models based on training data.
In general, Machine Learning algorithms split the data in (ESA, 2019):
Training Dataset: the sample data used to fit the model;
Validation Dataset: the sample data used to tune the model parameters to fit on the training dataset;
Test Dataset: the sample data used to provide an evaluation of the final model;
Usually, the training and model evaluation are performed iteratively.
4.4.6.1. Random Forest
Random Forest is a particular machine learning technique, based on the iterative and random creation of decision trees (i.e. a set of rules and conditions that define a class).
First, the input features should be defined, which can be spectral bands or ancillary rasters. Training Areas should be created to define the classes used for training the model.
Random Forest calculates several random decision trees, based on the following parameters:
number of training samples: is the number of training data (pixels) randomly used to train the model; it should be set lower than total training input pixels;
number of trees: is the number of decision trees; the more the number of trees, the more is the model accuracy, but it also increases the calculation time.
For instance, a decision tree could be defined as:
class 1 = band 1 > 0.1 –> band 2 < 0.3 –> band 3 > 0.4
class 2 = band 1 > 0.4 –> band 2 > 0.6 –> band 3 < 0.1
class 3 = band 1 < 0.7 –> band 2 > 0.1 –> band 3 < 0.5
Random Forest creates several decision trees randomly. Usually, the Gini coefficient is calculated to split the trees. Therefore, a model based on the decision trees is created and used to classify all the pixels.
A pixel is classified according to the majority vote of decision trees, for example a pixel is classified as class 1 if most decision trees evaluated it as class 1. Also, a confidence layer is produced, which measures the uncertainty of the model based on training data.
Random Forest can be used to evaluate the importance of input features, according to the contribution thereof to the model.
4.4.6.2. Multi-Layer Perceptron
Multi-Layer Perceptron is a supervised classification algorithm that is based on the definition of an artificial neural network. A Multi-Layer Perceptron is made of an input layer, one or more hidden layers (made of a defined number of neurons that are fully connected by non-linear activation functions), and the output layer (also read this documentation
Several parameters can be defined as described here
4.4.6.3. Support Vector Machine
Support Vector Machine is a supervised classification algorithm that is based on the calculation of hyperplanes in order to separate input data values.
Several parameters can be defined as described at this link
4.4.7. Spectral Distance
It is useful to evaluate the spectral distance (or separability) between training signatures or pixels, in order to assess if different classes that are too similar could cause classification errors. The SCP implements the following algorithms for assessing similarity of spectral signatures.
4.4.7.1. Jeffries-Matusita Distance
Jeffries-Matusita Distance calculates the separability of a pair of probability distributions. This can be particularly meaningful for evaluating the results of Maximum Likelihood classifications.
The Jeffries-Matusita Distance \(J_{xy}\) is calculated as (Richards and Jia, 2006):
where:
where:
\(x\) = first spectral signature vector;
\(y\) = second spectral signature vector;
\(\Sigma_{x}\) = covariance matrix of sample \(x\);
\(\Sigma_{y}\) = covariance matrix of sample \(y\);
The Jeffries-Matusita Distance is asymptotic to 2 when signatures are completely different, and tends to 0 when signatures are identical.
4.4.7.2. Spectral Angle
The Spectral Angle is the most appropriate for assessing the Spectral Angle Mapping algorithm. The spectral angle \(\theta\) is defined as (Kruse et al., 1993):
Where:
\(x\) = spectral signature vector of an image pixel;
\(y\) = spectral signature vector of a training area;
\(n\) = number of image bands.
Spectral angle goes from 0 when signatures are identical to 90 when signatures are completely different.
4.4.7.3. Euclidean Distance
The Euclidean Distance is particularly useful for the evaluating the result of Minimum Distance classifications. In fact, the distance is defined as:
where:
\(x\) = first spectral signature vector;
\(y\) = second spectral signature vector;
\(n\) = number of image bands.
The Euclidean Distance is 0 when signatures are identical and tends to increase according to the spectral distance of signatures.
4.4.7.4. Bray-Curtis Similarity
The Bray-Curtis Similarity is a statistic used for assessing the relationship between two samples (read this). It is useful in general for assessing the similarity of spectral signatures, and Bray-Curtis Similarity \(S(x, y)\) is calculated as:
where:
\(x\) = first spectral signature vector;
\(y\) = second spectral signature vector;
\(n\) = number of image bands.
The Bray-Curtis similarity is calculated as percentage and ranges from 0 when signatures are completely different to 100 when spectral signatures are identical.
4.4.8. Classification Result
The result of the classification process is a raster (see an example of Landsat classification in Figure Landsat classification), where pixel values correspond to class IDs and each color represent a land cover class.
A certain amount of errors can occur in the land cover classification (i.e. pixels assigned to a wrong land cover class), due to spectral similarity of classes, or wrong class definition during the ROI collection.
4.4.9. Accuracy Assessment
After the classification process, it is useful to assess the accuracy of land cover classification, in order to identify and measure map errors. Usually, accuracy assessment is performed with the calculation of an error matrix, which is a table that compares map information with reference data (i.e. ground truth data) for a number of sample areas (Congalton and Green, 2009).
The following table is a scheme of error matrix, where k is the number of classes identified in the land cover classification, and n is the total number of collected sample units. The items in the major diagonal (aii) are the number of samples correctly identified, while the other items are classification error.
Scheme of Error Matrix
Ground truth 1 |
Ground truth 2 |
… |
Ground truth k |
Total |
|
---|---|---|---|---|---|
Class 1 |
\(a_{11}\) |
\(a_{12}\) |
… |
\(a_{1k}\) |
\(a_{1+}\) |
Class 2 |
\(a_{21}\) |
\(a_{22}\) |
… |
\(a_{2k}\) |
\(a_{2+}\) |
… |
… |
… |
… |
… |
… |
Class k |
\(a_{k1}\) |
\(a_{k2}\) |
… |
\(a_{kk}\) |
\(a_{k+}\) |
Total |
\(a_{+1}\) |
\(a_{+2}\) |
… |
\(a_{+k}\) |
\(n\) |
Therefore, it is possible to calculate the overall accuracy as the ratio between the number of samples that are correctly classified (the sum of the major diagonal), and the total number of sample units n (Congalton and Green, 2009).
The overall accuracy (also expressed in percentage) is defined as:
The user’s accuracy for each class is defined as the ratio (also expressed in percentage) between correct samples and the row total:
The commission error \(CE_i = 1 - U_i\) corresponds to pixels classified as class \(i\) that actually belong to a different class.
The producer’s accuracy for each class is calculated as the ratio (also expressed in percentage) between correct samples and the column total:
The omission error \(OE_i = 1 - P_i\) corresponds to pixels actually belonging to class \(i\) that were classified erroneously as a different class.
It is recommended to calculate the area based error matrix (Olofsson et al., 2014) where each element represents the estimated area proportion of each class. This allows for estimating the unbiased user’s accuracy and producer’s accuracy, the unbiased area of classes according to reference data, and the standard error of area estimates.
For further information, the following documentation is freely available: Landsat Data Users Handbook.
4.5. Image processing
Remote sensing images can be processed in various ways in order to obtain classification, indices, or other derived information that can be useful for land cover characterization.
4.5.1. Principal Component Analysis
Principal Component Analysis (PCA) is a method for reducing the dimensions of measured variables (bands) to the principal components (JARS, 1993).
Th principal component transformation provides a new set of bands (principal components) having the following characteristic: principal components are uncorrelated; each component has variance less than the previous component. Therefore, this is an efficient method for extracting information and data compression (Ready and Wintz, 1973).
Given an image with N spectral bands, the principal components are obtained by matrix calculation (Ready and Wintz, 1973; Richards and Jia, 2006):
where:
\(Y\) = vector of principal components
\(D\) = matrix of eigenvectors of the covariance matrix \(C_x\) in X space
\(t\) denotes vector transpose
And \(X\) is calculated as:
\(P\) = vector of spectral values associated with each pixel
\(M\) = vector of the mean associated with each band
Thus, the mean of \(X\) associated with each band is 0. \(D\) is formed by the eigenvectors (of the covariance matrix \(C_x\)) ordered as the eigenvalues from maximum to minimum, in order to have the maximum variance in the first component. This way, the principal components are uncorrelated and each component has variance less than the previous component(Ready and Wintz, 1973).
Usually the first two components contain more than the 90% of the variance. For example, the first principal components can be displayed in a Color Composite for highlighting Land Cover classes, or used as input for Supervised Classification.
4.5.2. Pan-sharpening
Pan-sharpening is the combination of the spectral information of multispectral bands (MS), which have lower spatial resolution (for Landsat bands, spatial resolution is 30m), with the spatial resolution of a panchromatic band (PAN), which for Landsat 7 and 8 it is 15m. The result is a multispectral image with the spatial resolution of the panchromatic band (e.g. 15m). In SCP, a Brovey Transform is applied, where the pan-sharpened values of each multispectral band are calculated as (Johnson, Tateishi and Hoan, 2012):
where \(I\) is Intensity, which is a function of multispectral bands.
The following weights for I are defined, basing on several tests performed using the SCP. For Landsat 8, Intensity is calculated as:
For Landsat 7, Intensity is calculated as:
4.5.3. Spectral Indices
Spectral indices are operations between spectral bands that are useful for extracting information such as vegetation cover (JARS, 1993). One of the most popular spectral indices is the Normalized Difference Vegetation Index (NDVI), defined as (JARS, 1993):
NDVI values range from -1 to 1. Dense and healthy vegetation show higher values, while non-vegetated areas show low NDVI values.
Another index is the Enhanced Vegetation Index (EVI) which attempts to account for atmospheric effects such as path radiance calculating the difference between the blue and the red bands (Didan,et al., 2015). EVI is defined as:
where: \(G\) is a scaling factor, \(C_1\) and \(C_2\) are coefficients for the atmospheric effects, and \(L\) is a factor for accounting the differential NIR and Red radiant transfer through the canopy. Typical coefficient values are: \(G = 2.5\), \(L = 1\), \(C_1 = 6\), \(C_2 = 7.5\) (Didan,et al., 2015).
4.5.4. Clustering
Clustering is the grouping of pixels based on spectral similarity (e.g. Euclidean Distance or Spectral Angle) calculated for a multispectral image (Richards and Jia, 2006).
Clustering can be used for unsupervised classification or for the automatic selection of spectral signatures. It is worth noticing that, while Supervised Classification produces a classification whit the classes identified during the training process, the classes produced by clustering (i.e. clusters) have no definition and consequently the user must assign a land cover label to each class.
The main advantage of clustering resides in automation. Of course, clusters do not necessarily represent a particular land cover type and additional processing could be required for producing an accurate classification.
There are several types of clustering, mainly based on iterative methods; the following are the algorithms provided in SCP.
4.5.4.1. K-means
The K-means method is based on the calculation of the average spectral signature of clusters (Wikipedia, 2017; JARS, 1993).
At first, the user defines the number of clusters expected in the image, which correspond to as many spectral signatures (i.e. seeds). Starting spectral signatures can be selected in various ways (e.g. randomly, provided by the user, calculated automatically from image values).
During the first iteration clusters are produced calculating the pixel spectral distance with initial spectral signatures. The algorithms Euclidean Distance or Spectral Angle can be used for distance calculation. Pixels are assigned according to the most similar spectral signature, therefore producing clusters.
Then, the average spectral signature is calculated for each cluster of pixels, resulting in the spectral signatures that will be used in the following iteration.
This process continues iteratively producing clusters and mean spectral signatures, until one of the following condition is verified:
the spectral distance between the spectral signatures produced in this iteration with the corresponding ones produced in the previous iteration is lower than a certain threshold;
the maximum number of iterations is reached.
After the last iteration, a raster of clusters is produced using the spectral signatures derived from the last iteration.
4.5.4.2. ISODATA
The ISODATA (Iterative Self-Organizing Data Analysis Technique) method is similar to K-means but with the additional steps of merging clusters having similar spectral signatures and splitting clusters having too high variability (i.e. standard deviation) of spectral signatures (Ball & Hall, 1965). Following, the SCP implementation of ISODATA is described.
At first, the user defines the number of clusters expected in the image, which correspond to as many spectral signatures (i.e. seeds). Starting spectral signatures can be selected in various ways (e.g. randomly, provided by the user, calculated automatically from image values). Initial parameters provided by user are:
\(C\) = number of desired clusters
\(N_{min}\) = minimum number of pixels for a cluster
\(\sigma_{t}\) = maximum standard deviation threshold for splitting
\(D_{t}\) = distance threshold for merging
During the first iteration clusters are produced calculating the Euclidean Distance of pixels with initial spectral signatures. Pixels are assigned according to the most similar spectral signature, therefore producing clusters.
Therefore, the following parameters are calculated:
\(N_{i}\) = number of pixels of cluster \(i\)
\(S_{i}\) = average spectral signature of cluster \(i\)
\(AVERAGEDIST_{i}\) = average distance of cluster \(i\) with the seed spectral signature
\(AVERAGEDISTANCE\) = overall average distance of all clusters
\(\sigma_{ij}\) = standard deviation of cluster \(i\) in band \(j\)
\(\sigma max_{i}\) = maximum standard deviation of cluster \(i\) (i.e. \(max( \sigma_{ij} )\))
\(k_{i}\) = band where \(\sigma max_{i}\) occurred
\(Sk_{i}\) = value of \(S_{i}\) at band \(k_{i}\)
\(P\) = number of clusters
Then, for each cluster \(i\), if \(N_{i}\) < \(N_{min}\) , then the cluster \(i\) is discarded.
If \(P\) <= \(C\) then try to split clusters. For each cluster \(i\):
If \(\sigma max_{i}\) > \(\sigma_{t}\) :
If ((\(AVERAGEDIST_{i}\) > \(AVERAGEDISTANCE\)) AND (\(N_{i}\) > (2 * \(N_{min}\) + 2) )) OR (\(C\) > 2 * \(P\)):
create a new spectral signature \(S_{p + 1}\) = \(S_{i}\)
in \(S_{i}\) set the value \(Sk_{i}\) = \(Sk_{i}\) + \(\sigma max_{i}\)
in \(S_{p + 1}\) set the value \(Sk_{p + 1}\) = \(Sk_{i}\) - \(\sigma max_{i}\)
\(P\) = \(P\) + 1
start a new iteration
If \(P\) > (2 * \(C\)) then try to merge clusters.
For each combination \(xy\) of spectral signatures calculate \(D_{xy}\) = Euclidean Distance of spectral signatures \(S_{x}\) and \(S_{y}\) .
If the minimum \(D_{xy}\) is greater than \(D_{t}\):
S_{i} = (\(N_{i}\) * S_{i} + \(N_{j}\) * S_{j})/(\(N_{i}\) + \(N_{j}\))
discard S_{j}
\(P\) = \(P\) - 1
start a new iteration
After the last iteration, a raster of clusters is produced using the spectral signatures derived from the last iteration. The number of clusters can vary according to the processes of splitting and merging.
4.6. Image conversion to reflectance
This chapter provides information about the conversion to reflectance implemented in SCP.
4.6.1. Radiance at the Sensor’s Aperture
Radiance is the « flux of energy (primarily irradiant or incident energy) per solid angle leaving a unit surface area in a given direction », « Radiance is what is measured at the sensor and is somewhat dependent on reflectance » (NASA, 2011, p. 47).
Images such as Landsat or Sentinel-2 are composed of several bands and a metadata file which contains information required for the conversion to reflectance.
Landsat images are provided in radiance, scaled prior to output. For Landsat images Spectral Radiance at the sensor’s aperture (\(L_{\lambda}\), measured in [watts/(meter squared * ster * \(\mu m\))]) is given by (https://www.usgs.gov/core-science-systems/nli/landsat/using-usgs-landsat-level-1-data-product):
where:
\(M_{L}\) = Band-specific multiplicative rescaling factor from Landsat metadata (RADIANCE_MULT_BAND_x, where x is the band number)
\(A_{L}\) = Band-specific additive rescaling factor from Landsat metadata (RADIANCE_ADD_BAND_x, where x is the band number)
\(Q_{cal}\) = Quantized and calibrated standard product pixel values (DN)
Sentinel-2 images (Level-1C) are already provided in Top Of Atmosphere (TOA) Reflectance, scaled prior to output (ESA, 2015).
4.6.2. Top Of Atmosphere (TOA) Reflectance
Images in radiance can be converted to Top Of Atmosphere (TOA) Reflectance (combined surface and atmospheric reflectance) in order to reduce the in between-scene variability through a normalization for solar irradiance. This TOA reflectance (\(\rho_{p}\)), which is the unitless ratio of reflected versus total power energy (NASA, 2011), is calculated by:
where:
\(L_{\lambda}\) = Spectral radiance at the sensor’s aperture (at-satellite radiance)
\(d\) = Earth-Sun distance in astronomical units (provided with Landsat 8 metadata file, and an excel file is available from http://landsathandbook.gsfc.nasa.gov/excel_docs/d.xls )
\(ESUN_{\lambda}\) = Mean solar exo-atmospheric irradiances
\(\theta_{s}\) = Solar zenith angle in degrees, which is equal to \(\theta_{s}\) = 90° - \(\theta_{e}\) where \(\theta_{e}\) is the Sun elevation
It is worth pointing out that Landsat 8 images are provided with band-specific rescaling factors that allow for the direct conversion from DN to TOA reflectance.
Sentinel-2 images are already provided in scaled TOA reflectance, which can be converted to TOA reflectance with a simple calculation using the Quantification Value provided in the metadata (see https://sentinel.esa.int/documents/247904/349490/S2_MSI_Product_Specification.pdf ).
Sentinel-3 images are already provided in scaled TOA radiance.
Conversion to reflectance is performed applying the coefficients
scale_factor
and add_offset
provided in the metadata of each band.
The ancillary raster tie_geometries.nc
provides the value of sun zenith
angle and the ancillary raster instrument_data
provides information about
the solar flux for each band, which are used for the conversion to reflectance
with the correction for sun angle.
In addition, the georeferencing of the bands is performed using the ancillary
raster geo_coordinates.nc
which provides coordinates of every pixel.
4.6.3. Surface Reflectance
The effects of the atmosphere (i.e. a disturbance on the reflectance that varies with the wavelength) should be considered in order to measure the reflectance at the ground.
As described by Moran et al. (1992), the land surface reflectance (\(\rho\)) is:
where:
\(L_{p}\) is the path radiance
\(T_{v}\) is the atmospheric transmittance in the viewing direction
\(T_{z}\) is the atmospheric transmittance in the illumination direction
\(E_{down}\) is the downwelling diffuse irradiance
Therefore, we need several atmospheric measurements in order to calculate \(\rho\) (physically-based corrections). Alternatively, it is possible to use image-based techniques for the calculation of these parameters, without in-situ measurements during image acquisition. It is worth mentioning that Landsat Surface Reflectance High Level Data Products for Landsat 8 are available (for more information read http://landsat.usgs.gov/CDR_LSR.php).
4.6.4. DOS1 Correction
The Dark Object Subtraction (DOS) is a family of image-based atmospheric corrections. Chavez (1996) explains that « the basic assumption is that within the image some pixels are in complete shadow and their radiances received at the satellite are due to atmospheric scattering (path radiance). This assumption is combined with the fact that very few targets on the Earth’s surface are absolute black, so an assumed one-percent minimum reflectance is better than zero percent”. It is worth pointing out that the accuracy of image-based techniques is generally lower than physically-based corrections, but they are very useful when no atmospheric measurements are available as they can improve the estimation of land surface reflectance. The path radiance is given by (Sobrino et al., 2004):
where:
\(L_{min}\) = « radiance that corresponds to a digital count value for which the sum of all the pixels with digital counts lower or equal to this value is equal to the 0.01% of all the pixels from the image considered” (Sobrino et al., 2004, p. 437), therefore the radiance obtained with that digital count value (\(DN_{min}\))
\(L_{DO1\%}\) = radiance of Dark Object, assumed to have a reflectance value of 0.01
In particular for Landsat images:
Sentinel-2 images are converted to radiance prior to DOS1 calculation.
The radiance of Dark Object is given by (Sobrino et al., 2004):
Therefore the path radiance is:
There are several DOS techniques (e.g. DOS1, DOS2, DOS3, DOS4), based on different assumption about \(T_{v}\), \(T_{z}\) , and \(E_{down}\) . The simplest technique is the DOS1, where the following assumptions are made (Moran et al., 1992):
\(T_{v}\) = 1
\(T_{z}\) = 1
\(E_{down}\) = 0
Therefore the path radiance is:
And the resulting land surface reflectance is given by:
ESUN [W /(m2 * \(\mu m\))] values for Landsat sensors are provided in the following table.
ESUN values for Landsat bands
Band |
Landsat 1 MSS* |
Landsat 2 MSS* |
Landsat 3 MSS* |
Landsat 4 TM* |
Landsat 5 TM* |
Landsat 7 ETM+** |
---|---|---|---|---|---|---|
1 |
1983 |
1983 |
1970 |
|||
2 |
1795 |
1796 |
1842 |
|||
3 |
1539 |
1536 |
1547 |
|||
4 |
1823 |
1829 |
1839 |
1028 |
1031 |
1044 |
5 |
1559 |
1539 |
1555 |
219.8 |
220 |
225.7 |
6 |
1276 |
1268 |
1291 |
|||
7 |
880.1 |
886.6 |
887.9 |
83.49 |
83.44 |
82.06 |
8 |
1369 |
* from Chander, Markham, & Helder (2009)
** from http://landsathandbook.gsfc.nasa.gov/data_prod/prog_sect11_3.html
For Landsat 8, \(ESUN\) can be calculated as (from http://grass.osgeo.org/grass65/manuals/i.landsat.toar.html ):
where RADIANCE_MAXIMUM and REFLECTANCE_MAXIMUM are provided by image metadata.
ESUN [W /(m2 * \(\mu m\))] values for Sentinel-2 sensor (provided in image metadata) are illustrated in the following table.
ESUN values for Sentinel-2 bands
Band |
Sentinel-2 |
---|---|
1 |
1913.57 |
2 |
1941.63 |
3 |
1822.61 |
4 |
1512.79 |
5 |
1425.56 |
6 |
1288.32 |
7 |
1163.19 |
8 |
1036.39 |
8A |
955.19 |
9 |
813.04 |
10 |
367.15 |
11 |
245.59 |
12 |
85.25 |
ESUN [W /(m2 * \(\mu m\))] values for ASTER sensor are illustrated in the following table (from Finn et al., 2012).
ESUN values for ASTER bands
Band |
ASTER |
---|---|
1 |
1848 |
2 |
1549 |
3 |
1114 |
4 |
225.4 |
5 |
86.63 |
6 |
81.85 |
7 |
74.85 |
8 |
66.49 |
9 |
59.85 |
An example of comparison of to TOA reflectance, DOS1 corrected reflectance and the Landsat Surface Reflectance High Level Data Products (ground truth) is provided in Figure Spectral signatures of a built-up pixel.
4.7. Conversion to Temperature
This chapter provides the basic information about the conversion to At-Satellite Brightness Temperature implemented in SCP and the estimation of Land Surface Temperature.
4.7.1. Conversion to At-Satellite Brightness Temperature
For thermal bands, the conversion of DN to At-Satellite Brightness Temperature is given by (from https://www.usgs.gov/core-science-systems/nli/landsat/using-usgs-landsat-level-1-data-product ):
where:
\(K_{1}\) = Band-specific thermal conversion constant (in watts/meter squared * ster * \(\mu m\))
\(K_{2}\) = Band-specific thermal conversion constant (in kelvin)
and \(L_{\lambda}\) is the Spectral Radiance at the sensor’s aperture, measured in watts/(meter squared * ster * \(\mu m\)).
The \(K_{1}\) and \(K_{2}\) constants for Landsat sensors are provided in the following table.
Thermal Conversion Constants for Landsat
Constant |
Landsat 4* |
Landsat 5* |
Landsat 7** |
---|---|---|---|
\(K_{1}\) |
671.62 |
607.76 |
666.09 |
\(K_{2}\) |
1284.30 |
1260.56 |
1282.71 |
* from Chander & Markham (2003)
** from NASA (2011)
For Landsat 8, the \(K_{1}\) and \(K_{2}\) values are provided in the image metadata file.
\(K_{1}\) and \(K_{2}\) are calculated as (Jimenez-Munoz & Sobrino, 2010):
where (Mohr, Newell, & Taylor, 2015):
\(c_{1}\) = first radiation constant = \(1.191 * 10^{-16} W m^{2} sr^{-1}\)
\(c_{2}\) = second radiation constant = \(1.4388 * 10^{-2} m K\)
Therefore, for ASTER bands \(K_{1}\) and \(K_{2}\) are provided in the following table.
Thermal Conversion Constants for ASTER
Constant |
Band 10 |
Band 11 |
Band 12 |
Band 13 |
Band 14 |
---|---|---|---|---|---|
\(K_{1}\) |
\(3.024 * 10^{3}\) |
\(2.460 * 10^{3}\) |
\(1.909 * 10^{3}\) |
\(8.900 * 10^{2}\) |
\(6.464 * 10^{2}\) |
\(K_{2}\) |
\(1.733 * 10^{3}\) |
\(1.663 * 10^{3}\) |
\(1.581 * 10^{3}\) |
\(1.357 * 10^{3}\) |
\(1.273 * 10^{3}\) |
4.7.2. Estimation of Land Surface Temperature
Several studies have described the estimation of Land Surface Temperature. Land Surface Temperature can be calculated from At-Satellite Brightness Temperature \(T_{B}\) as (Weng et al., 2004):
where:
\(\lambda\) = wavelength of emitted radiance
\(c_{2} = h * c / s = 1.4388 * 10^{-2}\) m K
\(h\) = Planck’s constant = \(6.626 * 10^{-34}\) J s
\(s\) = Boltzmann constant = \(1.38 * 10^{-23}\) J/K
\(c\) = velocity of light = \(2.998 * 10^{8}\) m/s
The values of \(\lambda\) for the thermal bands of Landsat and ASTER satellites can be calculated from the tables in Landsat Satellites and ASTER Satellite.
Several studies used NDVI for the estimation of land surface emissivity (Sobrino et al., 2004); other studies used a land cover classification for the definition of the land surface emissivity of each class (Weng et al. 2004). For instance, the emissivity (\(e\)) values of various land cover types are provided in the following table (from Mallick et al., 2012).
Emissivity values
Land surface |
Emissivity e |
---|---|
Soil |
0.928 |
Grass |
0.982 |
Asphalt |
0.942 |
Concrete |
0.937 |
4.8. References
Ball, G. H. & Hall, D. J., 1965. ISODATA. A novel method of data analysis and pattern classification. Menlo Park: Stanford Research Institute.
Chander, G. & Markham, B., 2003. Revised Landsat-5 TM radiometric calibration procedures and postcalibration dynamic ranges Geoscience and Remote Sensing, IEEE Transactions on, 41, 2674 - 2677
Chavez, P. S., 1996. Image-Based Atmospheric Corrections - Revisited and Improved Photogrammetric Engineering and Remote Sensing, [Falls Church, Va.] American Society of Photogrammetry, 62, 1025-1036
Congalton, R. and Green, K., 2009. Assessing the Accuracy of Remotely Sensed Data: Principles and Practices. Boca Raton, FL: CRC Press
Didan, K.; Barreto Munoz, A.; Solano, R. & Huete, A., 2015. MODIS Vegetation Index User’s Guide. Collection 6, NASA
ESA, 2020. Sentinel-1 SAR Definitions. Available at https://sentinel.esa.int/web/sentinel/user-guides/sentinel-1-sar/definitions
ESA, 2020b. Sentinel-1 SAR Definitions. Available at https://sentinel.esa.int/web/sentinel/user-guides/sentinel-1-sar/overview
ESA, 2019. A machine learning glossary. Available at https://blogs.esa.int/philab/2019/03/29/a-machine-learning-glossary/
ESA, 2015. Sentinel-2 User Handbook. Available at https://sentinels.copernicus.eu/documents/247904/685211/Sentinel-2_User_Handbook
ESA, 2013. Sentinel-3 User Handbook. Available at https://sentinels.copernicus.eu/documents/247904/685236/Sentinel-3_User_Handbook
Finn, M.P., Reed, M.D, and Yamamoto, K.H., 2012. A Straight Forward Guide for Processing Radiance and Reflectance for EO-1 ALI, Landsat 5 TM, Landsat 7 ETM+, and ASTER. Unpublished Report from USGS/Center of Excellence for Geospatial Information Science, 8 p, http://cegis.usgs.gov/soil_moisture/pdf/A%20Straight%20Forward%20guide%20for%20Processing%20Radiance%20and%20Reflectance_V_24Jul12.pdf
Fisher, P. F. and Unwin, D. J., eds., 2005. Representing GIS. Chichester, England: John Wiley & Sons
JARS, 1993. Remote Sensing Note. Japan Association on Remote Sensing. Available at http://www.jars1974.net/pdf/rsnote_e.html
Jimenez-Munoz, J. C. & Sobrino, J. A., 2010. A Single-Channel Algorithm for Land-Surface Temperature Retrieval From ASTER Data IEEE Geoscience and Remote Sensing Letters, 7, 176-179
Johnson, B. A., Tateishi, R. and Hoan, N. T., 2012. Satellite Image Pansharpening Using a Hybrid Approach for Object-Based Image Analysis ISPRS International Journal of Geo-Information, 1, 228. Available at http://www.mdpi.com/2220-9964/1/3/228)
Kruse, F. A., et al., 1993. The Spectral Image Processing System (SIPS) - Interactive Visualization and Analysis of Imaging spectrometer. Data Remote Sensing of Environment
Mallick, J.; Singh, C. K.; Shashtri, S.; Rahman, A. & Mukherjee, S., 2012. Land surface emissivity retrieval based on moisture index from LANDSAT TM satellite data over heterogeneous surfaces of Delhi city International Journal of Applied Earth Observation and Geoinformation, 19, 348 - 358
Mohr, P. J.; Newell, D. B. & Taylor, B. N., 2015. CODATA Recommended Values of the Fundamental Physical Constants: 2014 National Institute of Standards and Technology, Committee on Data for Science and Technology
Moran, M.; Jackson, R.; Slater, P. & Teillet, P., 1992. Evaluation of simplified procedures for retrieval of land surface reflectance factors from satellite sensor output Remote Sensing of Environment, 41, 169-184
NASA, 2020. What is Synthetic Aperture Radar?. Available at https://earthdata.nasa.gov/learn/what-is-sar
NASA, 2013. Landsat 7 Science Data User’s Handbook. Available at https://www.usgs.gov/land-resources/nli/landsat/landsat-7-data-users-handbook
NASA, 2011. Landsat 7 Science Data Users Handbook Landsat Project Science Office at NASA’s Goddard Space Flight Center in Greenbelt, 186 http://landsathandbook.gsfc.nasa.gov/pdfs/Landsat7_Handbook.pdf
NOAA, 2020. GOES-R Series. Available at https://www.ncdc.noaa.gov/data-access/satellite-data/goes-r-series-satellites
Olofsson, P.; Foody, G. M.; Herold, M.; Stehman, S. V.; Woodcock, C. E. & Wulder, M. A., 2014. Good practices for estimating area and assessing accuracy of land change. Remote Sensing of Environment, 148, 42 – 57
Ready, P. and Wintz, P., 1973. Information Extraction, SNR Improvement, and Data Compression in Multispectral Imagery. IEEE Transactions on Communications, 21, 1123-1131
Richards, J. A. and Jia, X., 2006. Remote Sensing Digital Image Analysis: An Introduction. Berlin, Germany: Springer
Sobrino, J.; Jiménez-Muñoz, J. C. & Paolini, L., 2004. Land surface temperature retrieval from LANDSAT TM 5 Remote Sensing of Environment, Elsevier, 90, 434-440
USGS, 2015. Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) Level 1 Precision Terrain Corrected Registered At-Sensor Radiance Product (AST_L1T). AST_L1T Product User’s Guide. USGS EROS Data Center.
Vermote, E. F.; Roger, J. C. & Ray, J. P., 2015. MODIS Surface Reflectance User’s Guide. Collection 6, NASA
Weng, Q.; Lu, D. & Schubring, J., 2004. Estimation of land surface temperature–vegetation abundance relationship for urban heat island studies. Remote Sensing of Environment, Elsevier Science Inc., Box 882 New York NY 10159 USA, 89, 467-483
Wikipedia, 2017. k-means clustering. Available at https://en.wikipedia.org/wiki/K-means_clustering
