3.4.5.3. Combination

Combination

This tab allows for the combination of bands loaded in a Band set (complete interface). This tool is intended for combining classifications in order to get a raster where each value corresponds to a combination of class values. Raster values must be integer type. A combination raster is produced as output and the area of each combination is reported in a .csv file.

This tool supports virtual raster output; if the output file name ends with .vrt then the output is created as virtual raster composed of as many .tif files as the number of CPU threads defined in System; for large rasters this can speed up the process.

Tip

Information about APIs of this tool in Remotior Sensus at this link .

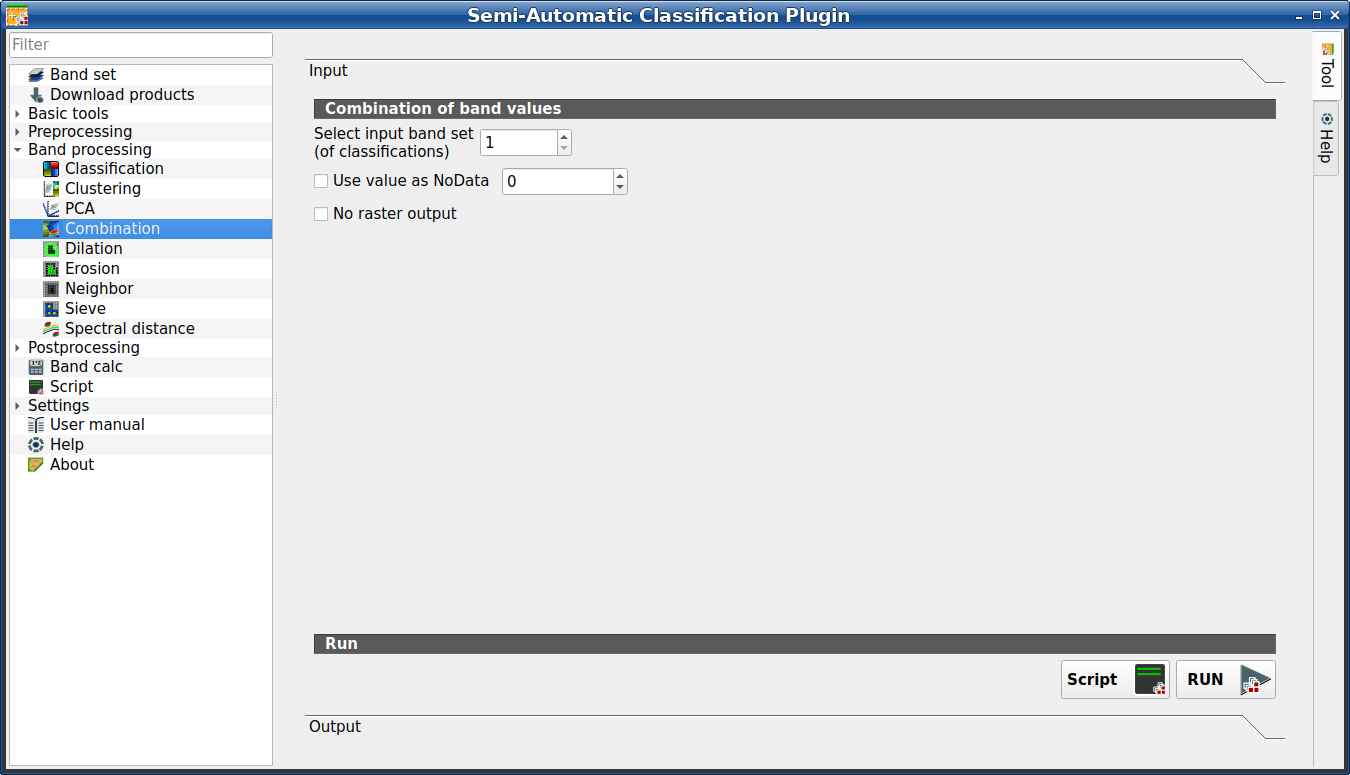

3.4.5.3.1. Combination of band values

Tool symbol and name	Description
Select input band set (of classifications)	select the input Band set (complete interface)
Use value as NoData	if checked, set the value of NoData pixels, ignored during the calculation
Script	add this function to the Script (complete interface)
RUN	run this function

The list of combinations and the area thereof will be displayed in the tab Output.
