3.4.5.7. PCA (complete interface)

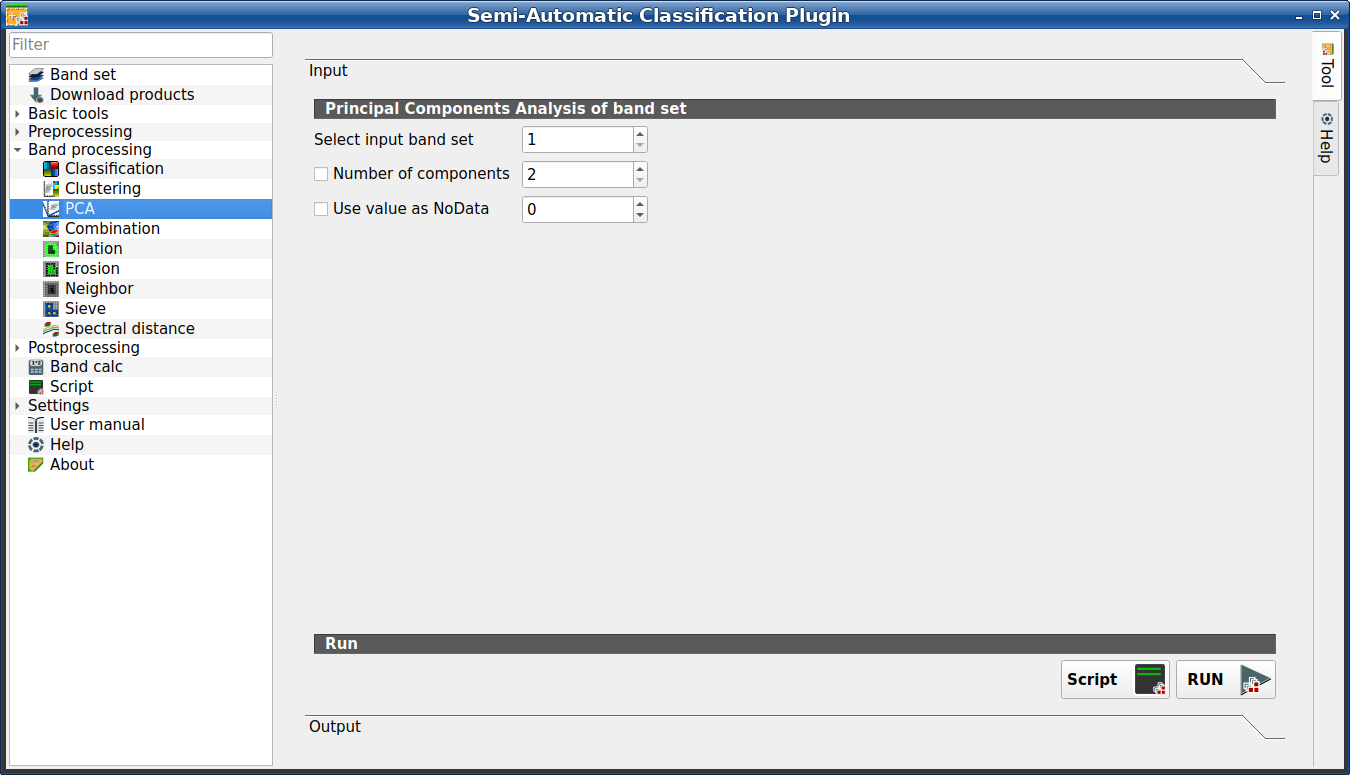

_images/pca_tab.png

PCA

This tab allows for the PCA (Principal Component Analysis) of bands loaded in the Band set. It is loaded only if the Simplified interface is not enabled.

Se guarda un .txt de informe junto con las bandas de PCA, que contiene la matriz de covarianza, la matriz de correlación, los vectores propios y los valores propios.

Truco

Information about APIs of this tool in Remotior Sensus at this link .

3.4.5.7.1. PCA

Símbolo de la herramienta y nombre

Descripción

Seleccionar el conjunto de bandas de entrada número de entrada

Selecciona el Band set (complete interface) de entrada

casilla de confirmación Number of components número de entrada opcional

set the number of components to be calculated

casilla de confirmación Usar el valor como Sin Datos número de entrada opcional

Si está marcado, configura el valor de los píxeles Sin datos, se ignorará durante los cálculos

Script herramienta_script

añadir está función al Script (complete interface)

EJECUTAR ejecutar

ejecutar esta función

The Output tab will display the Principal Components Analysis details (Covariance matrix, Correlation matrix, Eigenvectors, and Eigenvalues).
