3.4.5.1. Classification

_images/classification_alg.png

Classification

This tab allows for the classification of the Band set (complete interface) using the spectral signatures checked in ROI & Signature list. Several classification options are set in this tab which affect the classification process also during the Classification preview. Pretrained models are available, which require the installation of PyTorch.

This tool allows for the selection of one the following algorithms:

Also, it is possible to save and load a trained classifier.

Tüyo

Information about APIs of this tool in Remotior Sensus at this link .

3.4.5.1.1. Input

Tool symbol and name

Description

Select input band set input_number

select the input Band set (complete interface) to be classified

checkbox Use input normalization optional

if checked, normalize the input based on the selected method

radiobutton Z-score

if checked with checkbox Use input normalized, Z-score normalization of input is performed

radiobutton Linear scaling

if checked with checkbox Use input normalized, Linear scaling normalization of input is performed

Use training radiobutton Macroclass ID

if checked, the classification is performed using

Use training radiobutton Class ID the Macroclass ID (code MC ID of the signature)

if checked, the classification is performed using the Class ID (code C ID of the signature)

3.4.5.1.2. Algorithm

This tool allows for the selection of the classification algorithm. The algorithm tab includes the available parameters.

3.4.5.1.2.1. Maximum Likelihood

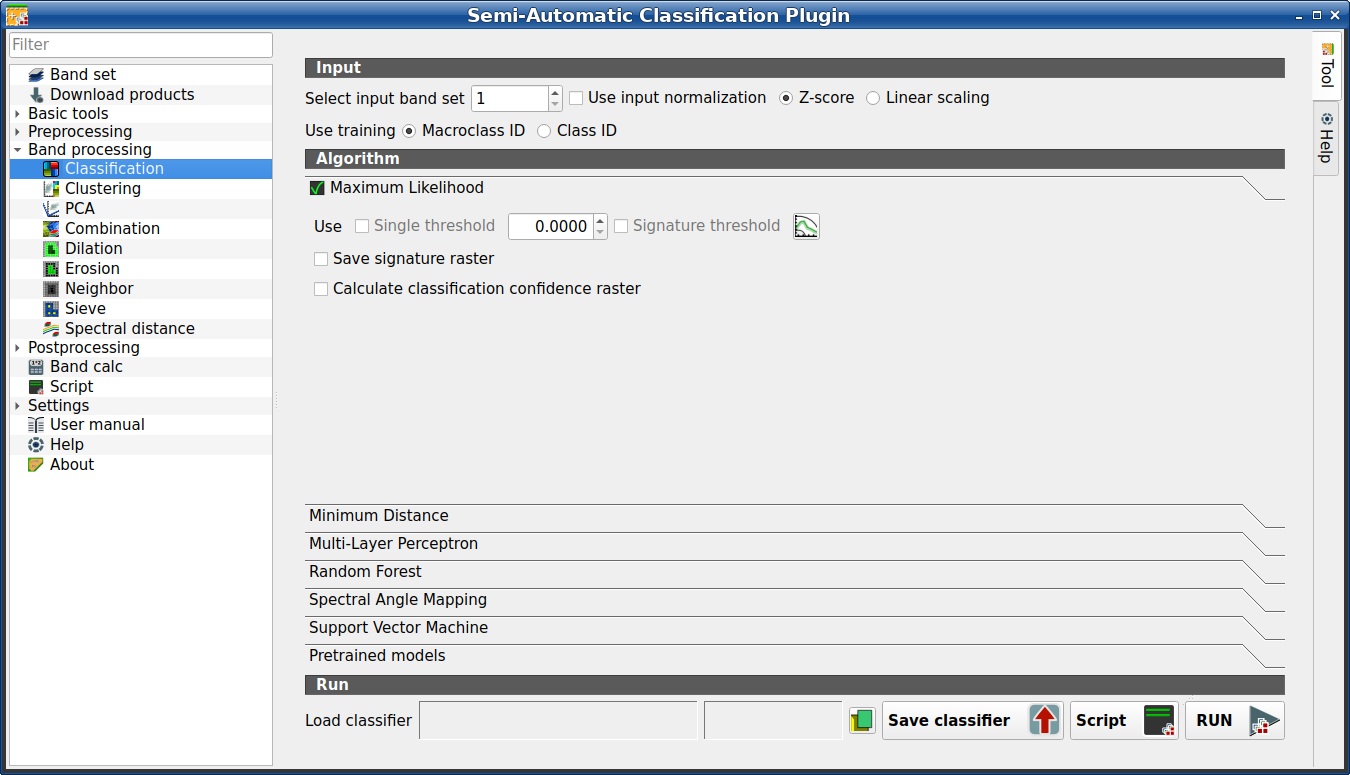

_images/classification_alg.png

Maximum Likelihood

Use the Maximum Likelihood algorithm.

Tool symbol and name

Description

Use single threshold input_number optional

if checked, it allows for the definition of a classification threshold (applied to all the spectral signatures); pixels are unclassified if probability is less than threshold value (max 100)

Signature threshold input_number optional

if checked, thresholds Signature threshold (complete interface) are evaluated

threshold_tool

open the Signature threshold (complete interface) for the definition of signature thresholds

checkbox Save signature raster optional

if checked, in addition to the classification raster, for each spectral signature a raster is saved in the same output directory, which represents the distance between pixel and signature

checkbox Calculate classification confidence raster optional

if checked, calculate classification confidence raster

3.4.5.1.2.2. Minimum Distance

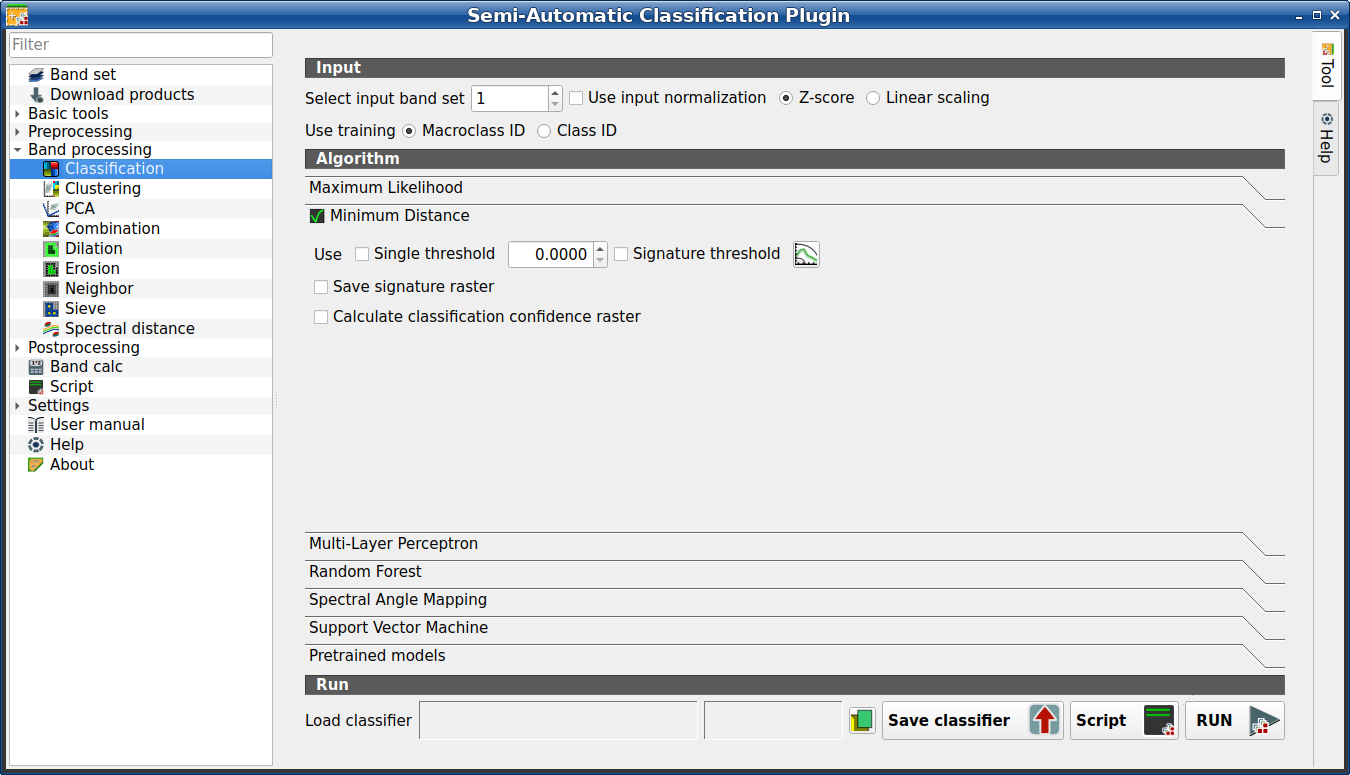

_images/minimum_distance_alg.png

Minimum Distance

Use the Minimum Distance algorithm.

Tool symbol and name

Description

Use single threshold input_number optional

if checked, it allows for the definition of a classification threshold (applied to all the spectral signatures); pixels are unclassified if distance is greater than threshold value

Signature threshold input_number optional

if checked, thresholds Signature threshold (complete interface) are evaluated

threshold_tool

open the Signature threshold (complete interface) for the definition of signature thresholds

checkbox Save signature raster optional

if checked, in addition to the classification raster, for each spectral signature a raster is saved in the same output directory, which represents the distance between pixel and signature

checkbox Calculate classification confidence raster optional

if checked, calculate classification confidence raster

3.4.5.1.2.3. Multi-layer Perceptron

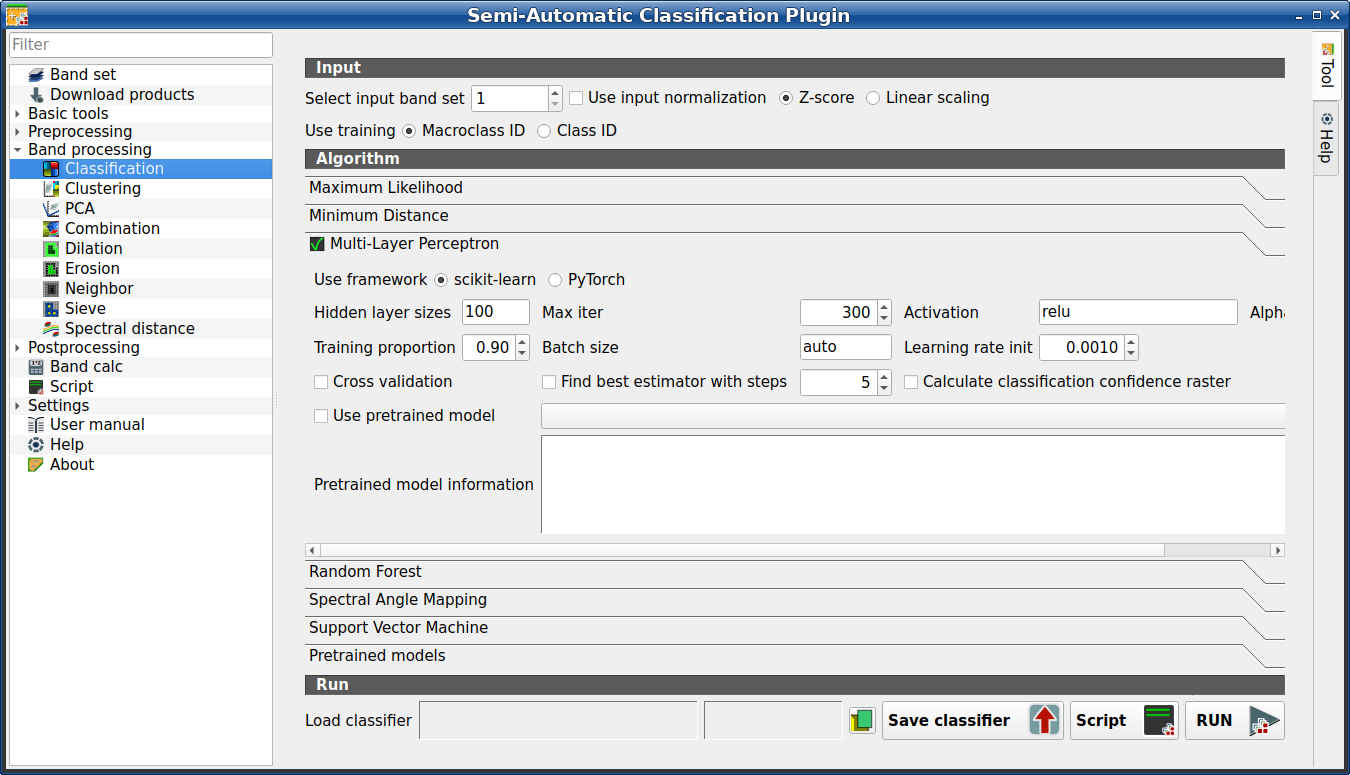

_images/multi_layer_perceptron_alg.png

Multi-layer Perceptron

Use the Multi-Layer Perceptron algorithm.

Tool symbol and name

Description

Use framework radiobutton scikit-learn

if checked, use scikit-learn framework (read this)

Use framework radiobutton PyTorch

if checked, use PyTorch framework (read about this)

Hidden layer sizes input_number

list of values separated by comma, where each value defines the number of neurons in a hidden layer (e.g.: 200, 100 for two hidden layers of 200 and 100 neurons respectively)

Max iter input_number

set the maximum number of iterations

Activation input_text

set the activation function (default: relu)

Alpha input_number

set the weight decay (also L2 regularization term) for Adam optimizer

Training proportion input_number

set the proportion of data to be used as training and the remaining part as test

Batch size input_text

set the number of samples per batch for optimizer; if auto, the batch is the minimum value between 200 and the number of samples

Learning rate init input_number

set initial learning rate

checkbox Cross validation optional

if checked, perform cross validation

checkbox Find best estimator with steps optional

if checked, find the best estimator iteratively with a number of steps

checkbox Calculate classification confidence raster optional

if checked, calculate classification confidence raster

checkbox Pretrained model input_list optional

if checked, use the selected pretrained model from the list

Pretrained model information

information about the selected pretrained model, in particular about the requirements (which input bands), band normalization, and model source.

Cross validation is a function provided by scikit-learn to avoid overfitting by splitting the training set into k smaller sets (read more . In particular, the function StratifiedKFold (with parameters n_splits=5, shuffle=True) is used to create 5 sets, each one containing approximately the same percentage of samples for each class as the complete set. This option can potentially increase significantly the computation time.

If Find best estimator with steps is checked, the algorithm tries to find the best estimator iteratively with the defined number of steps (the more the steps, the slower the process will be), by changing the algorithm parameters.

Pretrained models can be selected to create embeddings which are used with training input to train the classifier. The following Pretrained models are available for classification:

  • Swin-v2-Base model for Sentinel-2 single image. Requirements: Sentinel-2 bandset (TCI RGB (B04, B03, B02), TOA bands B05, B06, B07, B08, B11, B12). Normalization: TCI RGB bands divided by 255; B05, B06, B07, B08, B11, B12 divided by 8160 and clipped to 0-1. Framework: PyTorch. Source: Sentinel2_SwinB_SI_MS, pretrained by the Allen Institute for Artificial Intelligence (SatlasPretrain: https://satlas-pretrain.allen.ai). The model weights are released under the Open Data Commons Attribution License (ODC-BY). The repository code is licensed under the Apache License 2.0 (https://huggingface.co/allenai/satlas-pretrain). This tool downloads the official SatlasPretrain weights (Bastani et al., “SatlasPretrain: A Large-Scale Dataset for Remote Sensing Image Understanding”, ICCV 2023, arXiv:2211.15660, https://doi.org/10.48550/arXiv.2211.15660). All model weights remain the property of their respective authors.

  • Swin-v2-Tiny model for Sentinel-2 single image. Requirements: Sentinel-2 bandset (TCI RGB (B04, B03, B02), TOA bands B05, B06, B07, B08, B11, B12). Normalization: TCI RGB bands divided by 255; B05, B06, B07, B08, B11, B12 divided by 8160 and clipped to 0-1. Framework: PyTorch. Source: Sentinel2_SwinT_SI_MS, pretrained by the Allen Institute for Artificial Intelligence (SatlasPretrain: https://satlas-pretrain.allen.ai). The model weights are released under the Open Data Commons Attribution License (ODC-BY). The repository code is licensed under the Apache License 2.0 (https://huggingface.co/allenai/satlas-pretrain). This tool downloads the official SatlasPretrain weights (Bastani et al., “SatlasPretrain: A Large-Scale Dataset for Remote Sensing Image Understanding”, ICCV 2023, arXiv:2211.15660, https://doi.org/10.48550/arXiv.2211.15660). All model weights remain the property of their respective authors.

  • Swin-v2-Base model for Landsat 8 or Landsat 9 single image. Requirements: Landsat 8 or Landsat 9 bandset (Collection 2 Level-1 bands B01, B02, B03, B04, B05, B06, B07, B08, B09, B10, B11); Normalization: (band - 4000)/16320 and clipped to 0-1. Framework: PyTorch. Source: Landsat_SwinB_SI, pretrained by the Allen Institute for Artificial Intelligence (SatlasPretrain: https://satlas-pretrain.allen.ai). The model weights are released under the Open Data Commons Attribution License (ODC-BY). The repository code is licensed under the Apache License 2.0 (https://huggingface.co/allenai/satlas-pretrain). This tool downloads the official SatlasPretrain weights (Bastani et al., “SatlasPretrain: A Large-Scale Dataset for Remote Sensing Image Understanding”, ICCV 2023, arXiv:2211.15660, https://doi.org/10.48550/arXiv.2211.15660). All model weights remain the property of their respective authors.

Tüyo

The installation of PyTorch is required to run pretrained models. Please note that each model has specific characteristics and specific preprocessing of input image.

3.4.5.1.2.4. Random Forest

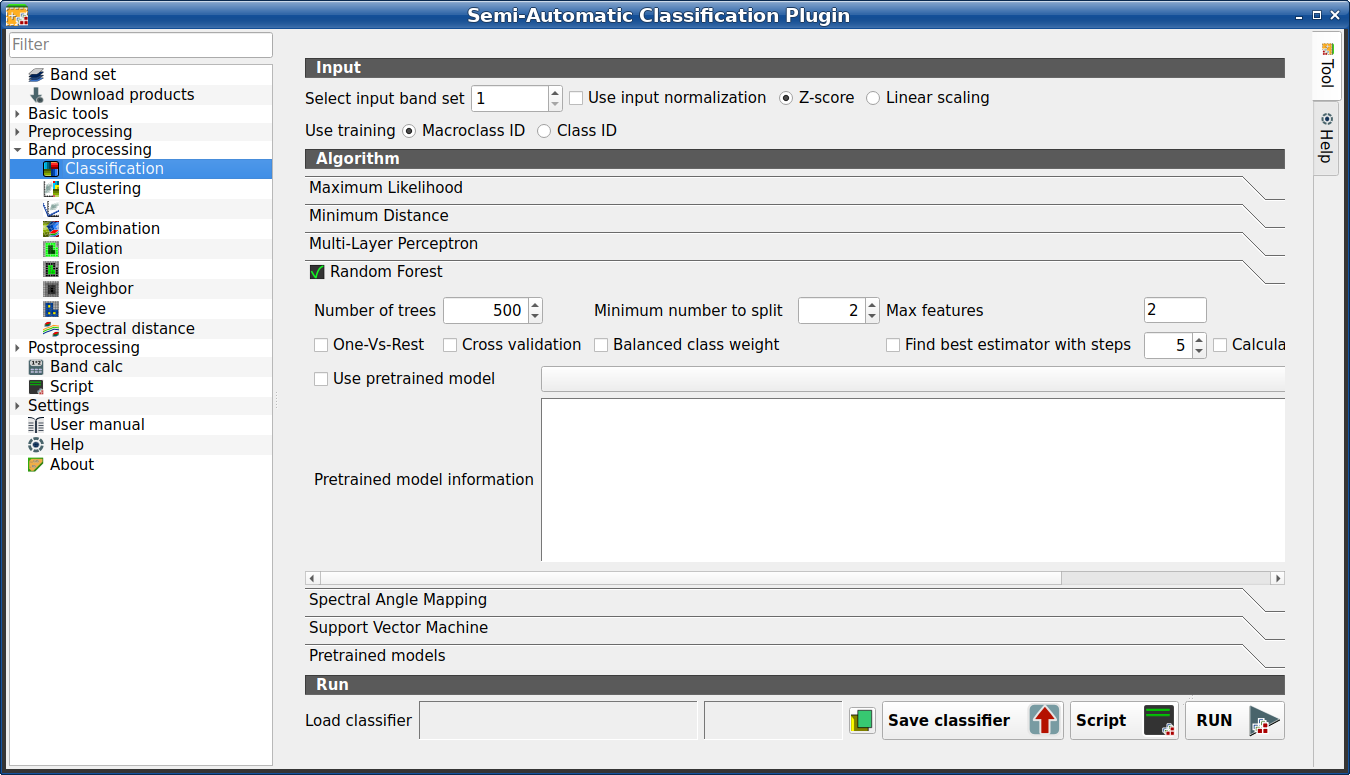

_images/random_forest_alg.png

Random Forest

Use the Random Forest algorithm.

Tool symbol and name

Description

Number of trees input_number

set the number of trees

Minimum number to split input_number

set the minimum number of samples required to split an internal node

Max features input_number optional

for node splitting, if empty all features are considered; if sqrt the square root of all the features, if integer number the number of features; if float number a fraction of all the features

checkbox One-Vs-Rest optional

if checked, perform One-Vs-Rest classification (read more)

checkbox Cross validation optional

if checked, perform cross validation

checkbox Balanced class weight optional

if checked, balanced weight is computed inversely proportional to class frequency

checkbox Find best estimator with steps optional

if checked, find the best estimator iteratively with a number of steps

checkbox Calculate classification confidence raster optional

if checked, calculate classification confidence raster

checkbox Pretrained model input_list optional

if checked, use the selected pretrained model from the list

Pretrained model information

information about the selected pretrained model, in particular about the requirements (which input bands), band normalization, and model source.

Cross validation is a function provided by scikit-learn to avoid overfitting by splitting the training set into k smaller sets (read more . In particular, the function StratifiedKFold (with parameters n_splits=5, shuffle=True) is used to create 5 sets, each one containing approximately the same percentage of samples for each class as the complete set. This option can potentially increase significantly the computation time.

If Find best estimator with steps is checked, the algorithm tries to find the best estimator iteratively with the defined number of steps (the more the steps, the slower the process will be), by changing the algorithm parameters.

If One-Vs-Rest is checked, the algorithm performs One-Vs-Rest classification which basically fits one classifier per class.

If Balanced class weight is checked, the algorithm gives all classes equal weight with a balanced weight that is computed inversely proportional to class frequency in the training data.

Pretrained models can be selected to create embeddings which are used with training input to train the classifier. The following Pretrained models are available for classification:

  • Swin-v2-Base model for Sentinel-2 single image. Requirements: Sentinel-2 bandset (TCI RGB (B04, B03, B02), TOA bands B05, B06, B07, B08, B11, B12). Normalization: TCI RGB bands divided by 255; B05, B06, B07, B08, B11, B12 divided by 8160 and clipped to 0-1. Framework: PyTorch. Source: Sentinel2_SwinB_SI_MS, pretrained by the Allen Institute for Artificial Intelligence (SatlasPretrain: https://satlas-pretrain.allen.ai). The model weights are released under the Open Data Commons Attribution License (ODC-BY). The repository code is licensed under the Apache License 2.0 (https://huggingface.co/allenai/satlas-pretrain). This tool downloads the official SatlasPretrain weights (Bastani et al., “SatlasPretrain: A Large-Scale Dataset for Remote Sensing Image Understanding”, ICCV 2023, arXiv:2211.15660, https://doi.org/10.48550/arXiv.2211.15660). All model weights remain the property of their respective authors.

  • Swin-v2-Tiny model for Sentinel-2 single image. Requirements: Sentinel-2 bandset (TCI RGB (B04, B03, B02), TOA bands B05, B06, B07, B08, B11, B12). Normalization: TCI RGB bands divided by 255; B05, B06, B07, B08, B11, B12 divided by 8160 and clipped to 0-1. Framework: PyTorch. Source: Sentinel2_SwinT_SI_MS, pretrained by the Allen Institute for Artificial Intelligence (SatlasPretrain: https://satlas-pretrain.allen.ai). The model weights are released under the Open Data Commons Attribution License (ODC-BY). The repository code is licensed under the Apache License 2.0 (https://huggingface.co/allenai/satlas-pretrain). This tool downloads the official SatlasPretrain weights (Bastani et al., “SatlasPretrain: A Large-Scale Dataset for Remote Sensing Image Understanding”, ICCV 2023, arXiv:2211.15660, https://doi.org/10.48550/arXiv.2211.15660). All model weights remain the property of their respective authors.

  • Swin-v2-Base model for Landsat 8 or Landsat 9 single image. Requirements: Landsat 8 or Landsat 9 bandset (Collection 2 Level-1 bands B01, B02, B03, B04, B05, B06, B07, B08, B09, B10, B11); Normalization: (band - 4000)/16320 and clipped to 0-1. Framework: PyTorch. Source: Landsat_SwinB_SI, pretrained by the Allen Institute for Artificial Intelligence (SatlasPretrain: https://satlas-pretrain.allen.ai). The model weights are released under the Open Data Commons Attribution License (ODC-BY). The repository code is licensed under the Apache License 2.0 (https://huggingface.co/allenai/satlas-pretrain). This tool downloads the official SatlasPretrain weights (Bastani et al., “SatlasPretrain: A Large-Scale Dataset for Remote Sensing Image Understanding”, ICCV 2023, arXiv:2211.15660, https://doi.org/10.48550/arXiv.2211.15660). All model weights remain the property of their respective authors.

Tüyo

The installation of PyTorch is required to run pretrained models. Please note that each model has specific characteristics and specific preprocessing of input image.

3.4.5.1.2.5. Spectral Angle Mapping

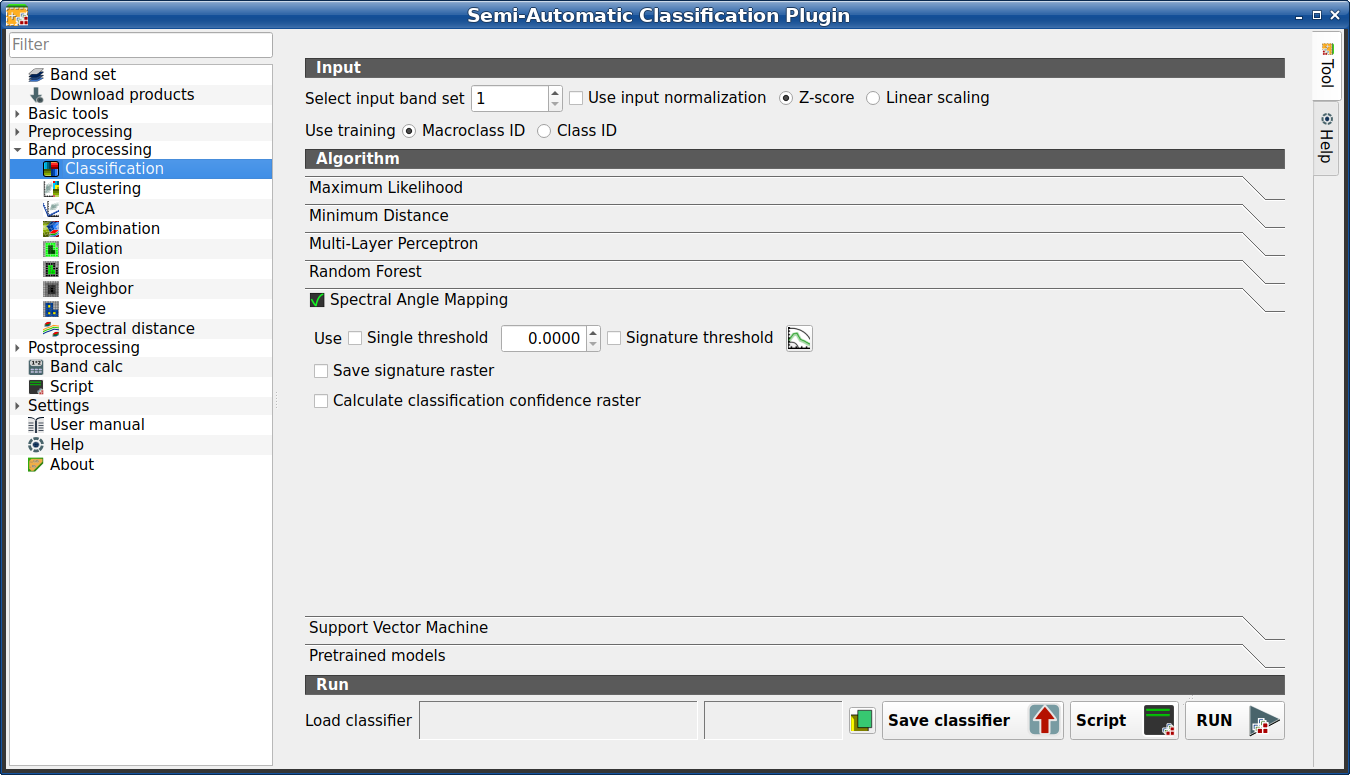

_images/spectra_angle_mapping_alg.png

Spectral Angle Mapping

Use the Spectral Angle Mapping algorithm.

Tool symbol and name

Description

Use single threshold input_number optional

if checked, it allows for the definition of a classification threshold (applied to all the spectral signatures); pixels are unclassified if spectral angle distance is greater than threshold value (max 90)

Signature threshold input_number optional

if checked, thresholds Signature threshold (complete interface) are evaluated

threshold_tool

open the Signature threshold (complete interface) for the definition of signature thresholds

checkbox Save signature raster optional

if checked, in addition to the classification raster, for each spectral signature a raster is saved in the same output directory, which represents the distance between pixel and signature

checkbox Calculate classification confidence raster optional

if checked, calculate classification confidence raster

3.4.5.1.2.6. Support Vector Machine

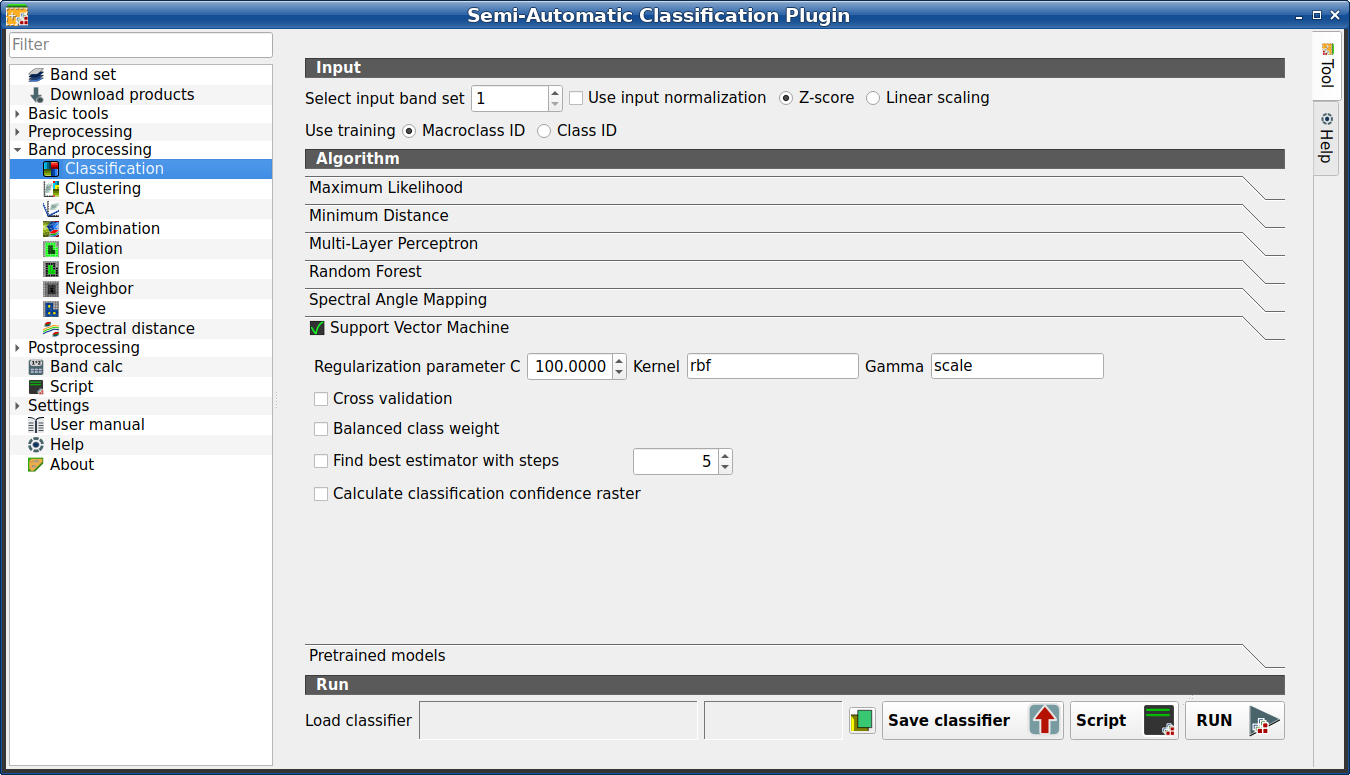

_images/support_vector_machine_alg.png

Support Vector Machine

Use the Support Vector Machine algorithm.

Tool symbol and name

Description

Regularization parameter C input_number

set the regularization parameter C

Kernel input_text

set the kernel (default: rbf)

Gamma input_text

set the kernel coefficient gamma (default: scale)

checkbox Cross validation optional

if checked, perform cross validation

checkbox Balanced class weight optional

if checked, balanced weight is computed inversely proportional to class frequency

checkbox Find best estimator with steps optional

if checked, find the best estimator iteratively with a number of steps

checkbox Calculate classification confidence raster optional

if checked, calculate classification confidence raster

Cross validation is a function provided by scikit-learn to avoid overfitting by splitting the training set into k smaller sets (read more . In particular, the function StratifiedKFold (with parameters n_splits=5, shuffle=True) is used to create 5 sets, each one containing approximately the same percentage of samples for each class as the complete set. This option can potentially increase significantly the computation time.

If Find best estimator with steps is checked, the algorithm tries to find the best estimator iteratively with the defined number of steps (the more the steps, the slower the process will be), by changing the algorithm parameters.

If Balanced class weight is checked, the algorithm gives all classes equal weight with a balanced weight that is computed inversely proportional to class frequency in the training data.

3.4.5.1.2.7. Pretrained models

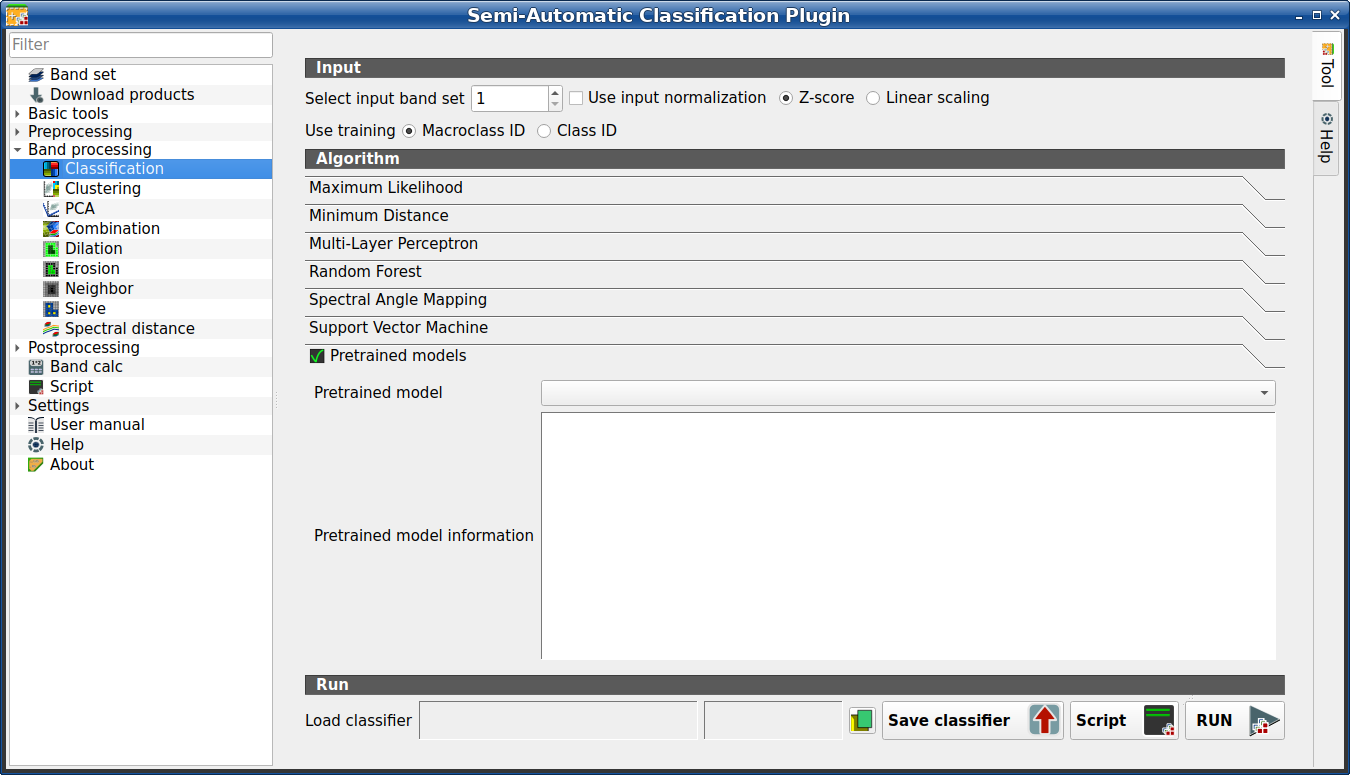

_images/pretrained_models_alg.png

Pretrained models

Use of Pretrained models.

Tool symbol and name

Description

Pretrained model input_list

select a pretrained model

Pretrained model information

information about the selected pretrained model, in particular about the requirements (which input bands), band normalization, and model source.

The following Pretrained models are available for classification:

  • Swin-v2-Base segmentation for Sentinel-2 single image (4 bands). Requirements: Sentinel-2 bandset (TCI RGB (B04, B03, B02), TOA bands B08). Normalization: TCI RGB bands divided by 255; B08 divided by 8160 and clipped to 0-1. Output classes: background, water, developed, tree, shrub, grass, crop, bare, snow, wetland, mangroves, moss. Source: Satlas_MS_tci-b08_epoch150, pretrained by DPR Team as part of the DPR Zoo Segmentation Hub framework (https://github.com/DPR25/dpr-zoo-segmentation-hub) based on SatlasPretrain models (https://satlas-pretrain.allen.ai). The repository code is licensed under the MIT License (https://huggingface.co/martinkorelic/dpr-zoo-models). This tool downloads the model weights (DPR Team, 2025. Made as part of Arnes Hackathon 2025). All model weights remain the property of their respective authors.

  • Swin-v2-Base segmentation for Sentinel-2 single image (3 bands). Requirements: Sentinel-2 bandset (TCI RGB (B04, B03, B02)). Normalization: TCI RGB bands divided by 255. Output classes: background, water, developed, tree, shrub, grass, crop, bare, snow, wetland, mangroves, moss. Source: Satlas_RGB1_epoch70, pretrained by DPR Team as part of the DPR Zoo Segmentation Hub framework (https://github.com/DPR25/dpr-zoo-segmentation-hub) based on SatlasPretrain models (https://satlas-pretrain.allen.ai). The repository code is licensed under the MIT License (https://huggingface.co/martinkorelic/dpr-zoo-models). This tool downloads the model weights (DPR Team, 2025. Made as part of Arnes Hackathon 2025). All model weights remain the property of their respective authors.

The first time a pretrained models is selected, the weights thereof are downloaded and saved in the plugin directory.

Tüyo

The installation of PyTorch is required to run pretrained models. Please note that each model has specific characteristics and specific preprocessing of input image.

3.4.5.1.3. Run

It is possible to run the classification, or save and load a trained classifier.

Classification raster is a file .tif (a QGIS style file .qml is saved along with the classification); also other outputs can be optionally calculated. Outputs are loaded in QGIS after the calculation.

Tool symbol and name

Description

Load classifier open_file

open an already save classifier file (.rsmo)

Save classifier export

save the classifier to file (.rsmo), in order to be loaded later

RUN run

run this function
