7. Frequently Asked Questions
If you have comments or questions please join the Facebook group .
Before asking, please check the official site From GIS to Remote Sensing and the following Frequently Asked Questions.
7.1. Plugin installation
7.1.1. How to install the plugin manually?
The SCP can be installed manually (this can be useful when an internet connection is not available, or the installation is required on multiple computers), following a few steps:
download the SCP zip archive from https://github.com/semiautomaticgit/SemiAutomaticClassificationPlugin/archive/master.zip ;
extract the content of the archive (several files such as
COPYING.txt
and folders such asui
) in a new folder namedSemiAutomaticClassificationPlugin
(without-master
);open the QGIS
plugins
directory (in Windows usuallyC:\Users\username\AppData\Roaming\QGIS\QGIS3\profiles\default\python\plugins
, in Linux and Mac usually/home/username/.local/share/QGIS/QGIS3/profiles/default/python/plugins
) and delete the folderSemiAutomaticClassificationPlugin
if present;copy the folder
SemiAutomaticClassificationPlugin
inside the QGISplugins
directory;the plugin should be installed; start QGIS, open the Plugin Manager and be sure that
Semi-Automatic Classification Plugin
is checked.
7.1.2. How to install the plugin from the official SCP repository?
It is possible to install the SCP using the official repository.
This repository allows for the installation of the latest version of SCP
(master
), in some cases also before the availability thereof in the QGIS
repository.
Therefore, this can be useful if you need a fix or a new function that is still
not available in the QGIS repository.
Moreover, the master
version in the SCP repository can be installed along
with the version available in the QGIS repository.
In order to install the SCP repository follow these steps:
Run QGIS;
From the main menu, select
Plugins
>Manage and Install Plugins
;
Click
Settings
then click the buttonAdd
;
Inside the
Repository details
enter:
Name:
SCP
URL:
https://semiautomaticgit.github.io/SemiAutomaticClassificationPlugin/repository.xml
and click OK
;
After the repository update, the item
Semi-Automatic Classification Plugin - master
should be listed with the other plugins;
From the menu
All
, select theSemi-Automatic Classification Plugin - master
and click the buttonInstall plugin
; the latest version of SCP should be automatically activated (ignore errors, the restart of QGIS could be necessary to complete the SCP installation); it is possible to deactivate the other SCP installed in the QGIS repository;
7.1.3. Can I use the previous version 7 of SCP?
The version 7 of SCP is no longer supported. However, it is possible to install the previous version 7 of SCP using the official repository. Also, this version can be installed along with the SCP version 8.
In order to install the SCP repository follow these steps:
Run QGIS;
From the main menu, select
Plugins
>Manage and Install Plugins
;
Click
Settings
then click the buttonAdd
;
Inside the
Repository details
enter:
Name:
SCP
URL:
https://semiautomaticgit.github.io/SemiAutomaticClassificationPlugin_v7/repository.xml
and click OK
;
After the repository update, the item
Semi-Automatic Classification Plugin - master
should be listed with the other plugins;
From the menu
All
, select theSemi-Automatic Classification Plugin - master
and click the buttonInstall plugin
; the latest version of SCP should be automatically activated (ignore errors, the restart of QGIS could be necessary to complete the SCP installation); it is possible to deactivate the other SCP installed in the QGIS repository;
7.1.4. Alternative installation of plugin dependencies
In case of issues with the installation, the SCP could fail to start or show a
message about updating the required Python dependency Remotior Sensus.
As a possible solution, one can install the additional plugin named QPIP
(developed by OPENGIS.ch) that allows for managing Python dependencies in QGIS,
following these steps:
open the QGIS Plugin manager;
search and install the plugin QPIP;
search and install (or reinstall) the Semi-Automatic Classification Plugin; a
QPIP
window should pop up notifying about the required dependency Remotior Sensus, clickOK
and wait for the installation to complete;
close the QGIS Plugin manager and restart QGIS.
The interface of the Semi-Automatic Classification Plugin should appear in QGIS.
7.2. Pre processing
7.2.1. Which image bands should I use for a semi-automatic classification?
In general, it is preferable to avoid thermal infrared bands. If you are using Landsat 4, 5 or 7 you should select bands: 1, 2, 3, 4, 5, 7 avoiding band 6 that is thermal infrared; for Landsat 8 you should select bands: 2, 3, 4, 5, 6, 7. Landsat 8 band 1 is generally avoided because it is very similar to the blue band and it is mainly used for coastal aerosol study. Landsat thermal infrared band is excluded from classifications because values are mainly related to object temperature.
For Sentinel-2 images you can use bands: 2, 3, 4, 5, 6, 7, 8, 8A, 11, 12.
7.2.2. Which Landsat bands can be converted to reflectance by the SCP?
All Landsat 1,2, and 3 MSS and Landsat 4, 5, 7, and 8 images downloaded from http://earthexplorer.usgs.gov/ and processed with the Level 1 Product Generation System (LPGS) can be converted to reflectance automatically by the SCP; products generated by the LPGS have a MTL file included that is required for the conversion.
7.2.3. Can I apply the conversion to Sentinel-2 images downloaded from the web?
Yes, you can convert also images downloaded from the web (actually the
conversion is recommended).
You should move all the bands (.jp2 files) and if available the .xml file
whose name contains MDT_SAFL1C
in the same directory.
Then select this directory in Image conversion.
Images are converted to reflectance.
7.2.4. Can I apply the conversion to Sentinel-2 L2A downloaded from the web?
Yes, you should move all the .jp2 files inside the same directory and rename the files with the band number in the ending of the name (e.g. from name_02_10m.jp2 to name_02.jp2) Then select this directory in Image conversion. Images are converted to reflectance.
7.2.5. Can I apply the Landsat conversion and DOS correction to clipped bands?
Yes, you can clip the images before the conversion to reflectance and then copy the MTL file (contained in the Landsat dataset) inside the directory with the clipped bands. If you want to apply the DOS correction (which is an image based technique) you should convert the original Landsat bands (the entire image) and then clip the conversion output (i.e. bands converted to reflectance).
7.2.6. Can I apply the DOS correction to bands with black border (i.e. with NoData value)?
If you want to apply the DOS correction to an entire band which has NoData
values (the black border with value = 0) then you have to check the checkbox
Use value as NoData
and set the value to 0.
This is because DOS is an image based technique, and NoData values must be
excluded from the calculation.
7.2.7. How to remove cloud cover from images?
DOS1 correction does not remove clouds from the image. However, Landsat 8 images include Band 9 that identifies clouds (see this NASA site). You can use this band for the creation of a mask.
7.3. Processing
7.3.1. I get classification errors. How can I improve the accuracy?
Several materials have similar spectral signatures (e.g. soil and built-up, or forest and other types of dense low vegetation), which can cause classification errors if ROIs, and spectral signatures thereof, are not acquired correctly. In order to improve the results, you can try to collect more ROIs over these areas, in order to train the algorithm for these very similar areas, also, display the spectral signatures of these areas in Spectral Signature Plot to assess their similarity. You can also use a Signature threshold for these signatures in order to reduce the variability thereof (only pixels very similar to the input signatures will be classified).
7.3.2. Is it possible to use the same training input for multiple images?
Yes, it is possible if all the images have the same number of bands. However, if images are acquired in different months, land cover changes (especially of vegetation state) will affect the spectral signature (i.e. the same pixel has different spectral signature in different periods). Atmospheric effects could also affect the images differently. That could reduce classification accuracy. Therefore, it is suggested to collect always the ROIs and spectral signatures for every image.
7.3.3. What is the difference between classes and macroclasses?
Please see Classes and Macroclasses.
7.3.4. Can I use SCP with images from drones or aerial photographs?
Yes, you can use them if they have at least 4 bands. With less than 4 bands, semi-automatic classification algorithms are unable to classify the land cover correctly. Alternative classification methods exist, such as object oriented classification, which is not implemented in SCP.
7.3.5. Why using only Landsat 8 band 10 in the estimation of surface temperature?
Several methods were developed for estimating surface temperature. The method described in the tutorial for temperature estimation requires only one band. Moreover, USGS recommends that users refrain from relying on Landsat 8 Band 11 data in quantitative analysis of the Thermal Infrared Sensor data (see Changes to Thermal Infrared Sensor (TIRS) data by USGS).
7.3.6. How can I speed up the processing?

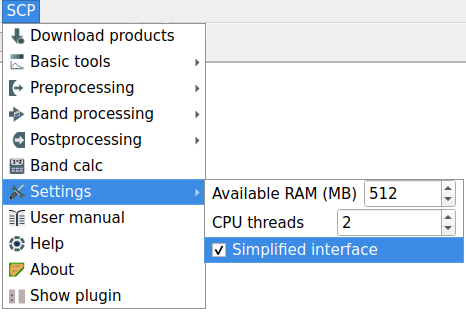

In order to speed up the processing you should set the available RAM and the number of threads available in System. Available RAM (MB) should be half of the system RAM (e.g. 1024MB if system has 2GB of RAM) or more if the system has a large amount of RAM (e.g. 10240MB if system has 16GB of RAM). CPU threads should be a value lower than the maximum number of system threads (e.g. if the system has 4 available threads set value 3).
Also, several tools allow for selecting the output format .vrt
avoiding
the time required to create a unique .tif
raster (after multiprocess),
especially useful for large rasters.
7.3.7. How do I perform accuracy assessment and how to design the number of samples?
Accuracy assessment is described in this tutorial .
Sample design is required to provide an adequate number of samples for each class, as described in “Olofsson, et al., 2014. Good practices for estimating area and assessing accuracy of land change. Remote Sensing of Environment, 148, 42 – 57”.
The number of samples (\(N\)) should be calculated as (Olofsson, et al., 2014):
where:
\(W_i\) = mapped area proportion of class i;
\(S_i\) = standard deviation of stratum i;
\(S_o\) = expected standard deviation of overall accuracy;
\(c\) = total number of classes;
To stratify the sample we should conjecture user’s accuracy and standard deviations of strata (Olofsson, et al., 2014). One can hypothesize that user’s accuracy is lower and standard deviations \(S_i\) is higher for classes having low area proportion, but of course these values should be carefully evaluated.
This requires some conjectures about overall accuracy and user’s accuracy of each class. We should base these conjectures on previous studies.
As starting values, we could assume \(S_o = 0.01\) and perform a rough accuracy assessment with random samples, and eventually calculate the \(S_i\) to perform the sampling design. Alternatively, one could start with Si = 0.5 for all the classes. Basically the higher is Si, the larger is the number of samples for that class.
7.4. Warnings
7.4.1. Warning [12]: The following signature will be excluded if using Maximum Likelihood. Why?
The ROI is too small (or too homogeneous) for the Maximum Likelihood algorithm because that ROI has a singular covariance matrix. You should create larger ROIs or don’t use the Maximum Likelihood algorithm in the classification process.
7.5. Errors
7.5.1. How can I report an error?
If you found an error of the Semi-Automatic Classification Plugin please follow these steps in order to collect the required information (log file):
close QGIS if already open;
open QGIS, open the Plugin tab Debug and check the checkbox Records detailed events in a log file ;
click the button Test dependencies in the tab Debug ;
load the data in QGIS (or open a previously saved QGIS project) and repeat all the steps that cause the error in the Plugin;
if the issue could be related to the image data, please use this sample dataset ;
if an error message appears (like the one in the following image), copy the whole content of the message in a text file;
open the tab Debug and uncheck the checkbox Records events in a log file, then click the button and save the log file (which is a text file containing information about the Plugin processes);
open the log file and copy the whole content of the file;
join the Facebook group , create a new post and copy the error message and the log file (or attach them).
7.6. Various
7.6.1. What can I do with the SCP?
SCP allows for the land cover classification of remote sensing images through Supervised Classification. You can produce a land cover raster using one of the Classification Algorithms available in SCP. These algorithms require spectral signatures or ROIs as input (for definitions please read Brief Introduction to Remote Sensing) that define the land cover classes to be identified in the image.
SCP can work with multispectral images acquired by satellites, airplanes, or drones. Also, SCP allows for the direct search and download of free images (see Download products). You cannot use orthophotos with less than 4 bands and LIDAR data with SCP.
Input image in SCP is called Band set, which is used as input for the classification. SCP provides several tools for the Preprocessing of downloaded images, such as the conversion to reflectance and manipulation of bands.
The Spectral Signature Plot and Scatter Plot allow for the analysis of spectral signatures and ROIs. Also, several Basic tools are available for easing the ROI creation and editing spectral signatures.
Raster calculation is available through the seamless integration of the tool Band calc with bands in the Band set, calculating mathematical expressions and spectral indices.
See the Basic Tutorials for more information and examples.
7.6.2. How to contribute to SCP
You can contribute to SCP by fixing and adding functionalities (see Where is the source code of SCP?), or translating the user manual (see How can I translate this user manual to another language?).
7.6.3. How can I translate this user manual to another language?
It is possible to easily translate the user manual to any language, because it is written in reStructuredText as markup language (using Sphinx). Therefore, your contribution is fundamental for the translation of the manual to your language. The following guide illustrates the main steps for the translation, which can be performed:
using the free online service Transifex;
using the gettext .po files.
Before translating, please read this document from the QGIS translation guide, which helps you understand the reStructuredText.
Method 1. Translation using the free online service Transifex
This is probably the easiest way to translate the manual using an online service.
Join the Semi-automatic Classification Manual project
Go to the page https://www.transifex.com/semi-automatic-classification/semi-automatic-classification-plugin-manual and click the button
Help translate
. You can sign in using your Google or Facebook account, or with a free registration.Select your language
Select your language and click the button
Join team
. If your language is not listed, click the buttonRequest language
.Translation
There are several files to be translated, which refer to the sections of the SCP documentation. To translate the SCP interface you should select the file
semiautomaticclassificationplugin.ts
.
Method 2. Translation using the gettext .po files
In order to use this method, you should be familiar with GitHub. This translation method allows for the translation of the PO files locally.
Download the translation files
Go to the GitHub project https://github.com/semiautomaticgit/SemiAutomaticClassificationManual_v4/tree/master/locale and download the .po files of your language (you can add your language, if it is not listed), or you can fork the repository. Every file .po is a text file that refers to a section of the User Manual.
Edit the translation files
Now you can edit the .po files. It is convenient to edit those file using one of the following programs: for instance Poedit for Windows and Mac OS X, or Gtranslator for Linux or OmegaT (Java based) for Windows, Linux and Mac OS X. These editors allow for an easy translation of every sentence in the User Manual.
7.6.4. Where is the source code of SCP?
The source code of SPC is available at the following link https://github.com/semiautomaticgit/SemiAutomaticClassificationPlugin
