3.4.4.4. Mosaic of band sets (complete interface)

Mosaic band sets

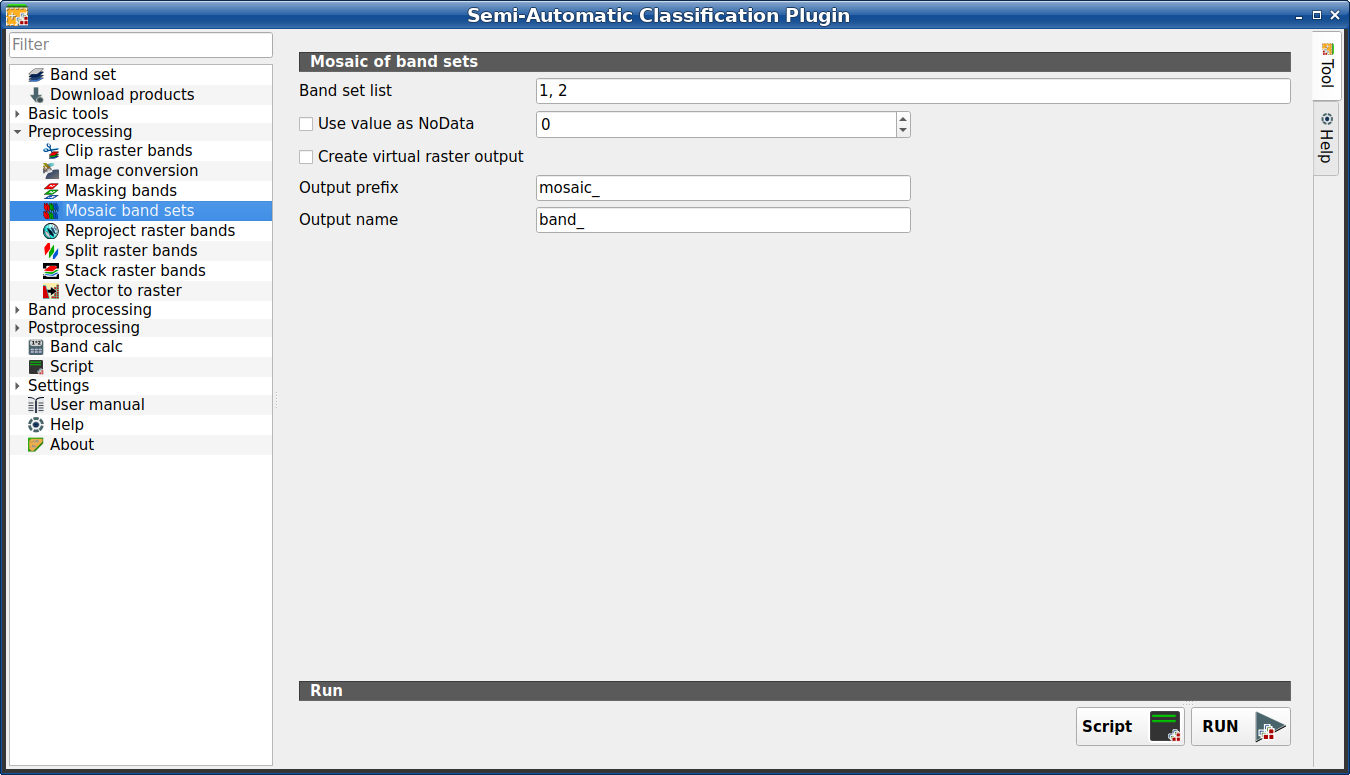

This tool allows for the mosaic of band sets, merging the corresponding bands of two or more band sets defined in the Band set (complete interface). An output band is created for every corresponding set of bands in the band sets. NoData values of one band set are replaced by the values of the other band sets. It is loaded only if the Simplified interface is not enabled.

Truco

Information about APIs of this tool in Remotior Sensus at this link .

3.4.4.4.1. Mosaico de conjuntos de bandas

Símbolo de la herramienta y nombre	Descripción
Band set list	list if band sets defined in the Band set (complete interface); in case of overlapping images, the pixel values of the first band set in the list are assigned
Usar el valor como Sin Datos	Si está marcado, configura el valor de los píxeles Sin datos, se ignorará durante los cálculos
Create virtual raster output	if checked, output is created as virtual raster .vrt composed of as many .tif files as the number of threads defined in System; for large rasters this can speed up the process
Prefijo del nombre del archivo de salida	set the prefix for output file names (default is mosaic)
Script	añadir está función al Script (complete interface)
EJECUTAR	ejecutar esta función
